Existing wood-burning enclosure · Framed with backer plate & faceplate · Faceplate only · Clean face
Supplemental heat output; actual output depends on power and settings.
Glowing Log Set
Yes — Napoleon Home App
INCLUDED WITH YOUR FIREPLACE
What's included
Rosedale Electric 3 29" Electric Fireplace Insert
Package contents for this model
FIREPLACE & FINISHING
- Napoleon Rosedale Electric 29-inch insert with integrated heater
- Integrated glowing log set
- Modulating ember-bed media
- MIRRO-FLAME porcelain reflective interior panel
- Front tempered viewing glass
CONTROLS & INSTALLATION
- Multifunction remote control
- 120V plug-in power connection
View Full Technical Specifications
Fit and finish
Dimensions
Overall size
W × H × D- Width
- 28 1/2"
- Height
- 19 3/4"
- Depth
- 12"
Framing / rough opening
Required opening- Framing width
- 30"
- Framing height
- 20 3/8"
- Framing depth
- 12 1/2"
Viewing area
Visible flame area- Viewing width
- 28 3/8"
- Viewing height
- 17 11/16"
Performance
Heating and electrical
- Maximum heat output
- 10,000 BTU
- Maximum wattage
- 3,000 W
- Heating area
- 400 sq. ft.
- Voltage
- 120 / 240 V
- Amperage
- See manufacturer documentation for voltage-specific current draw.
- Hardwire
- Yes
- Plug-in
- Yes
Project planning
Installation and viewing
- Installation type
- Insert
- Viewing style
- Front View
- Best For
- Existing fireplace openings
- Indoor / outdoor rating
- Indoor only
- Heater location
- Front Vent
- Installation configurations
- Existing wood-burning enclosureFramed with backer plate & faceplateFaceplate onlyClean face
Everyday experience
Controls and experience
- Smart / app control
- Yes — Napoleon Home App
- Remote
- Yes
- Media type
- Glowing Log Set
Model information
Product details
- Series
- Rosedale Electric
- Size
- 29"
- Size range
- A. Compact (Under 50")
Coverage
Warranty
5 Year Limited
About This Fireplace

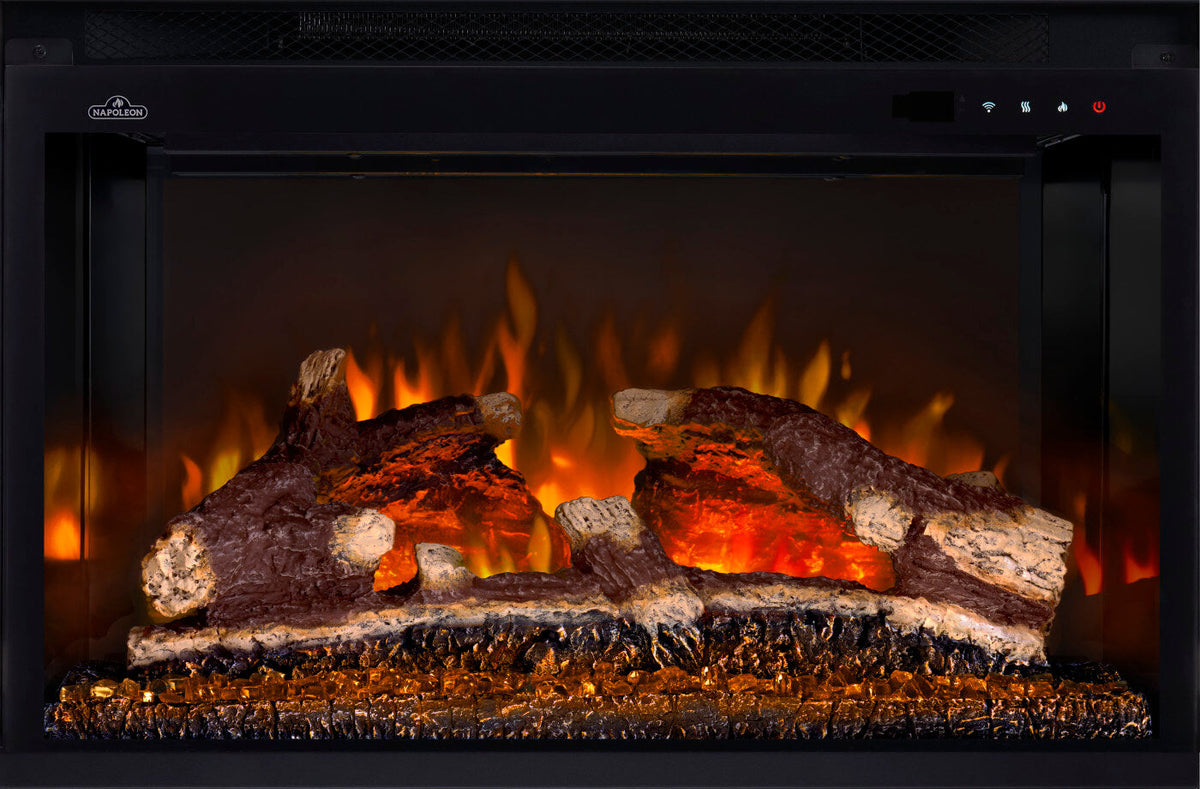

The Napoleon Rosedale™ Electric 3 is a 29-inch electric fireplace insert designed to retrofit an existing wood-burning firebox or install as a built-in fireplace in new construction.
It operates at 120 V when plugged in, producing 5,000 BTU with 1,500 W of heat, or can be hardwired to 240 V for up to 10,000 BTU. The unit features multi-layer flame technology, a glowing log set, two flame colours, a modulating ember bed, 13 top-light colour options, ECO and BOOST heat modes, an included remote, Napoleon Home App control, and smart-home compatibility.
Dimensions: 28.5 in W × 19.75 in H × 12 in D. Heating area: up to 400 sq. ft. Warranty: 5 Year Limited.
Will This Fit My Fireplace?
Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.
1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.
Measure the usable finished opening—not the outside brick, stone, tile or mantel.
2
Your Fit ResultBased on the measurements entered.
Enter all four measurements
We’ll compare your opening with the minimum space required.
MeasurementMinimumYour openingDifference
Width (front)29"——
Width (back)29"——
Height21"——
Depth12 1/2"——
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body
Illustration
The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.
Your openingEnter measurements
Minimum required29" W × 21" H
Extra space—
Your opening
Minimum required
Fireplace body
Frequently Asked Questions
Product, delivery and warranty answers in one place.
How much supplemental heat does this fireplace provide?
Maximum manufacturer-listed output: 10,000 BTU.
Manufacturer-listed heating area: 400 sq ft.
Actual heat output and room coverage depend on electrical configuration, room conditions and installation.
Can I install this fireplace below a TV?
Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.
What is included with this fireplace?
Verified package contents: Napoleon Rosedale Electric 29-inch insert with integrated heater, Integrated glowing log set, Modulating ember-bed media, MIRRO-FLAME porcelain reflective interior panel, Front tempered viewing glass, Multifunction remote control, 120V plug-in power connection. Optional media and accessories are sold separately unless specifically stated.
Can I check whether this fireplace fits my existing opening?
Yes. Compare your measured finished opening against this model's entered minimum requirements using our fit checker. Always confirm against the manufacturer's instructions.
How do shipping and local delivery work?
For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.
Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.
When will my fireplace arrive?
Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.
Can I pick up my fireplace in Burlington?
Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.
What warranty applies to this model?
The product's listed manufacturer warranty is 5 Year Limited.
Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.
What if my fireplace arrives damaged?
Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
Can the Napoleon Rosedale Electric be installed in an existing fireplace?
Yes. Napoleon states the Rosedale Electric can be retrofitted into an existing wood-burning firebox or fully recessed into a traditional masonry opening, and it can also be built into new custom framing.
Does the Rosedale Electric work with smart-home controls?
Yes. It works with the Napoleon Home App and is compatible with Google Home and Alexa; a multifunction remote is also included.
Downloads & Resources
Manufacturer documents for planning and installation.
Manufacturer Specification SheetMeasurements and technical informationView PDF ↗
Installation / Owner's ManualWiring, safety, clearances and operationView PDF ↗
