Front View
Sale
Supplemental heat output; actual output depends on power and settings.
Logs
Remote: Yes
INCLUDED WITH YOUR FIREPLACE
What's included

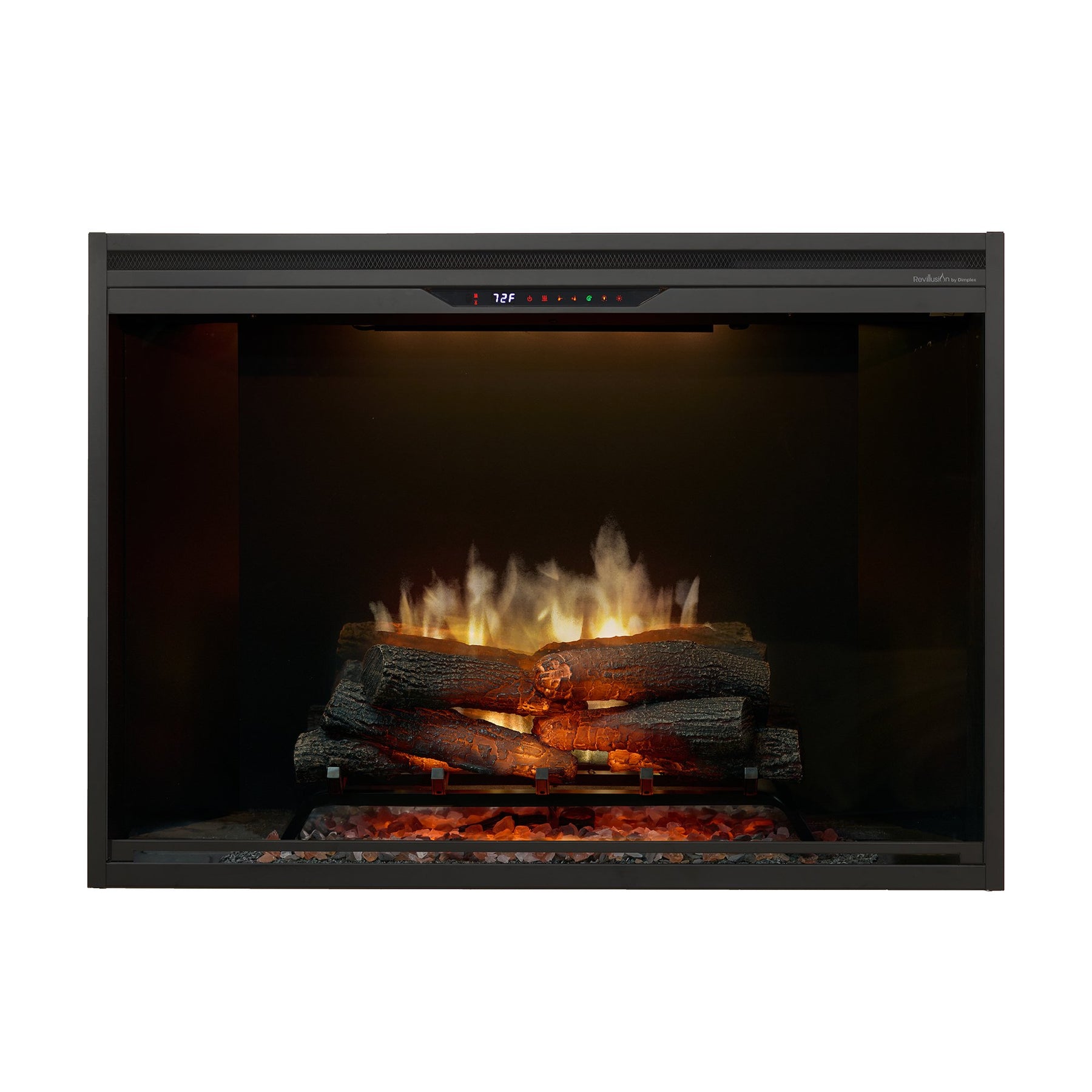

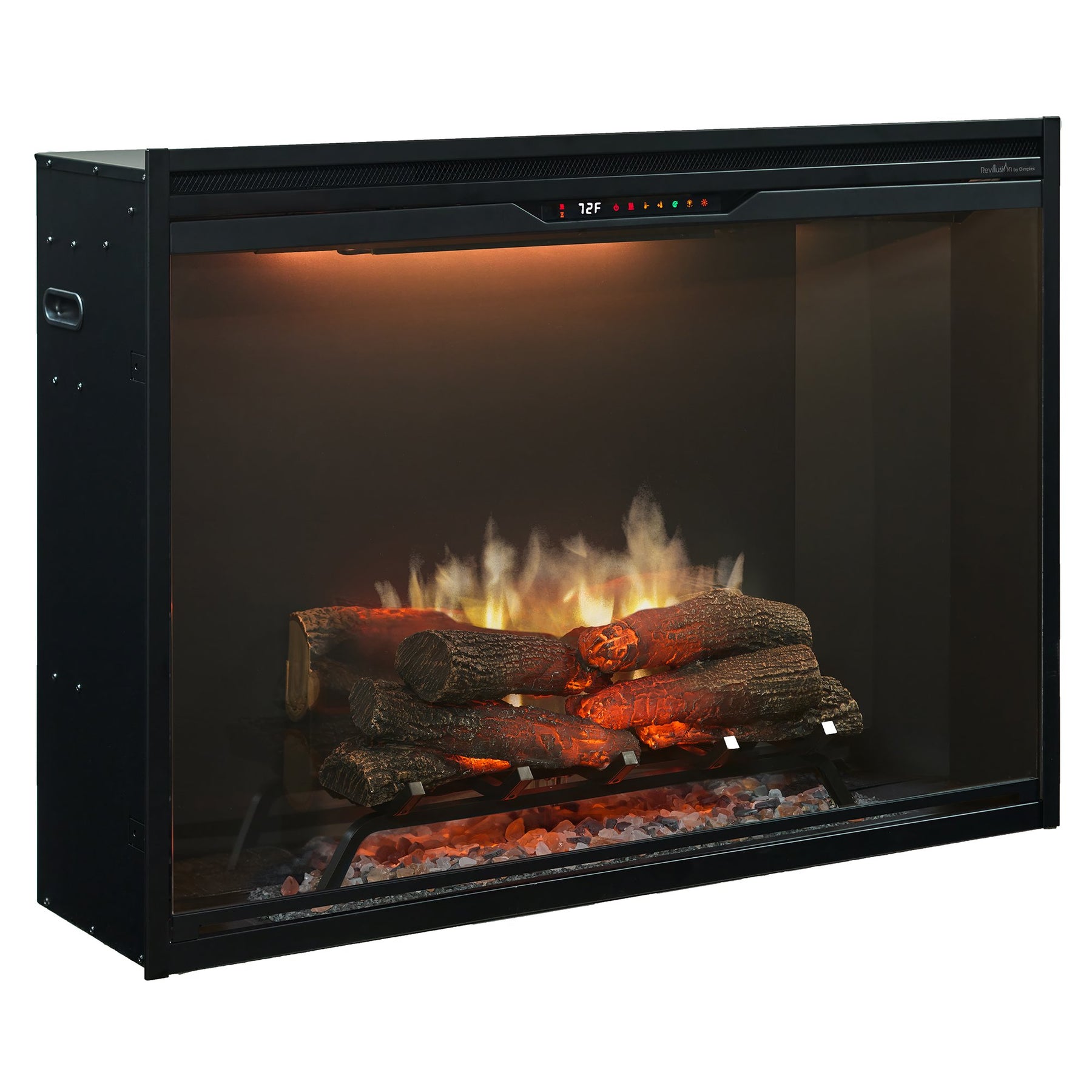

Revillusion 42" Built-in Firebox
Package contents for this model
FIREPLACE & FINISHING
- Dimplex Revillusion 42-inch built-in electric firebox with integrated heater
- Black decorative firebox interior and installed log set
- Tumbled glass ember media
- Front glass panel and glass trim
- Owner's and installation guide
CONTROLS & INSTALLATION
- Remote control
- 120V plug kit (power-cord assembly and four wire connectors)
- Front glass brackets, door pins, nuts and screws
View Full Technical Specifications
Fit and finish
Dimensions
Overall size
W × H × D- Width
- 43 1/4"
- Height
- 31"
- Depth
- 12 1/8"
Framing / rough opening
Required opening- Framing width
- 42 5/8"
- Framing height
- 30 5/8"
- Framing depth
- 12 1/2"
Performance
Heating and electrical
- Maximum heat output
- 8,786 BTU
- Maximum wattage
- 2,575 W
- Heating area
- 1,000 sq. ft.
- Voltage
- 120V / 208V / 240V
- Amperage
- See manufacturer documentation for voltage-specific current draw.
- Hardwire
- Yes
- Plug-in
- Yes
Project planning
Installation and viewing
- Installation type
- Insert
- Viewing style
- Front View
- Best For
- Traditional Fireplace Designs
- Indoor / outdoor rating
- Indoor Only
- Heater location
- Front Vent
Everyday experience
Controls and experience
- Flame Colours
- Red, Blue
- Remote
- Yes
- Media type
- Logs
Model information
Product details
- Series
- Revillusion
- Size
- 42"
- Size range
- A. Compact (Under 50")
- Shipping weight
- 113.9 lbs
Coverage
Warranty
2 Year Limited

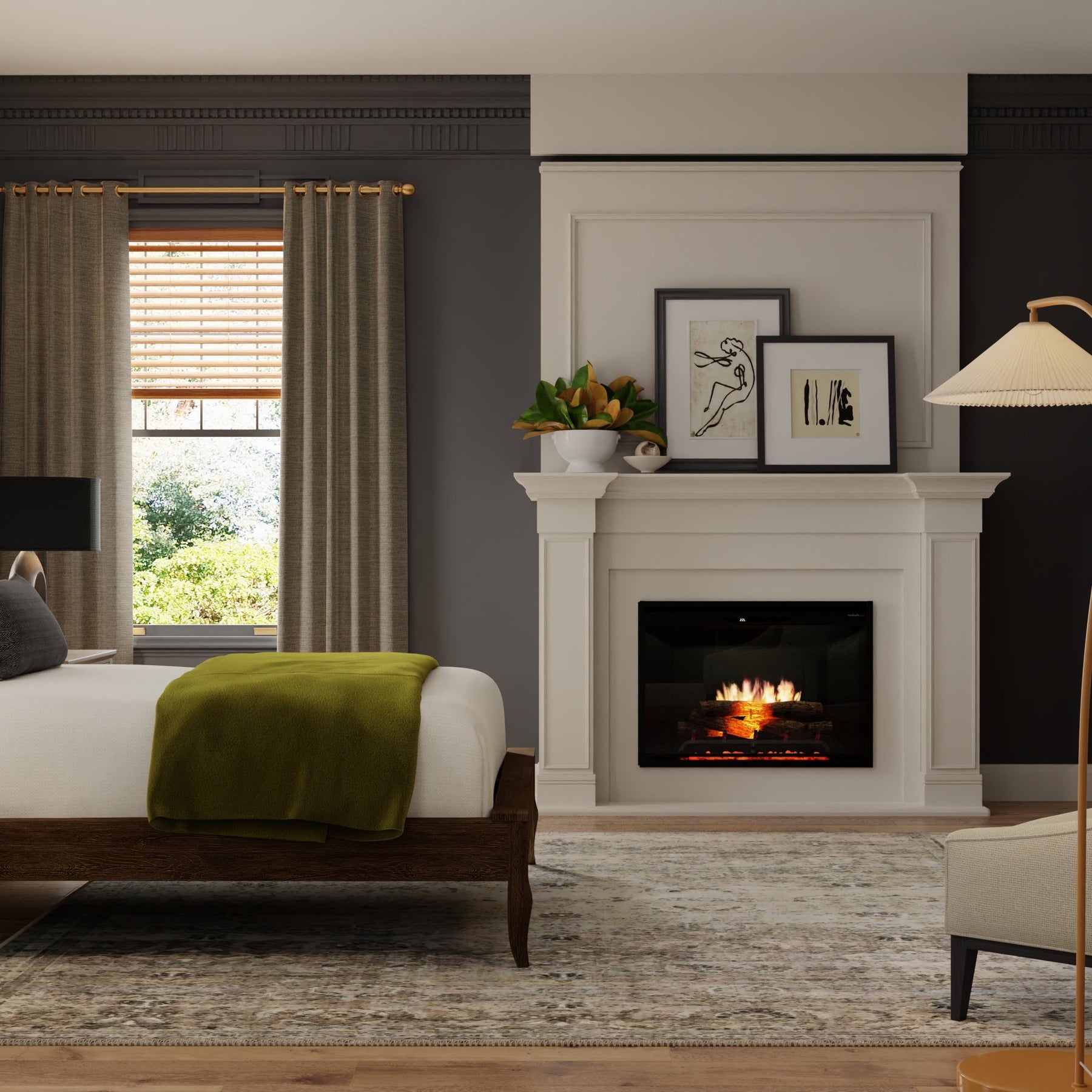

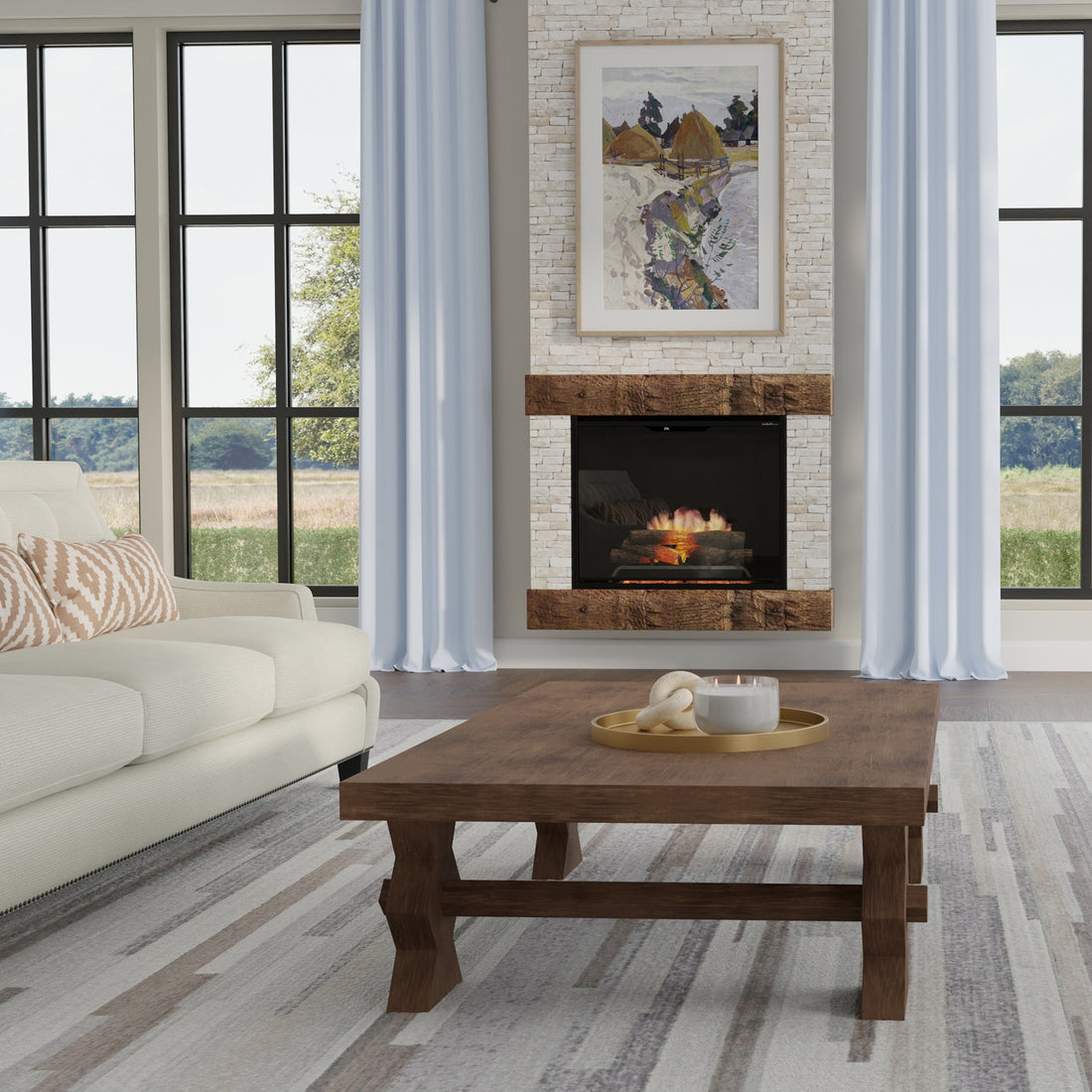

About This Fireplace
The Dimplex Revillusion Built-In Electric Firebox delivers a refined interpretation of the traditional fireplace, combining advanced flame technology with a realistic full-depth firebox design. A patented translucent panel creates the illusion of flames emerging from within the logs, offering a natural, wood-burning appearance with impressive depth.
Handcrafted Realogs®, molded from real wood and illuminated from within, provide a warm, lifelike glow. The ember bed—enhanced with layered lighting, tumbled glass, and black gravel—adds texture and movement for a dynamic visual effect. Offered in four backer finishes—Neutral Brick, Weathered Concrete, Herringbone, and Black—it adapts effortlessly to both modern and traditional interiors.
- Built-in electric firebox with realistic full-depth design
- Revillusion® technology for a natural flame effect
- Realogs® with internal illumination for added realism
- Ember bed with glass and black gravel for depth and texture
- Multiple backer finishes for versatile design options
Will This Fit My Fireplace?
Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.
1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.
Measure the usable finished opening—not the outside brick, stone, tile or mantel.
2
Your Fit ResultBased on the measurements entered.
Enter all four measurements
We’ll compare your opening with the minimum space required.
MeasurementMinimumYour openingDifference
Width (front)42 5/8"——
Width (back)42 5/8"——
Height30 5/8"——
Depth12 1/2"——
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body
Illustration
The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.
Your openingEnter measurements
Minimum required42 5/8" W × 30 5/8" H
Extra space—
Your opening
Minimum required
Fireplace body
Frequently Asked Questions
Product, delivery and warranty answers in one place.
How much supplemental heat does this fireplace provide?
Maximum manufacturer-listed output: 8,786 BTU.
Manufacturer-listed heating area: 1,000 sq ft.
Actual heat output and room coverage depend on electrical configuration, room conditions and installation.
Can I install this fireplace below a TV?
Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.
What is included with this fireplace?
Verified package contents: Dimplex Revillusion 42-inch built-in electric firebox with integrated heater, Black decorative firebox interior and installed log set, Tumbled glass ember media, Front glass panel and glass trim, Remote control, 120V plug kit (power-cord assembly and four wire connectors), Front glass brackets, door pins, nuts and screws, Owner's and installation guide. Optional media and accessories are sold separately unless specifically stated.
Can I check whether this fireplace fits my existing opening?
Yes. Compare your measured finished opening against this model's entered minimum requirements using our fit checker. Always confirm against the manufacturer's instructions.
How do shipping and local delivery work?
For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.
Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.
When will my fireplace arrive?
Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.
Can I pick up my fireplace in Burlington?
Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.
What warranty applies to this model?
The product's listed manufacturer warranty is 2 Year Limited.
Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.
What if my fireplace arrives damaged?
Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
Downloads & Resources
Manufacturer documents for planning and installation.
Manufacturer Specification SheetMeasurements and technical informationView PDF ↗
Installation / Owner's ManualWiring, safety, clearances and operationView PDF ↗
