The Dimplex Revillusion Built-in Electric Firebox delivers a fresh take on the classic fireplace, combining advanced flame technology with a deep, realistic viewing experience. A patented translucent panel creates the illusion of flames rising from within the logs, offering a natural, wood-burning look that suits both traditional and modern spaces.

Featuring handcrafted Realogs®, molded from real wood and illuminated from within, it produces a warm, lifelike glow. The ember bed is enhanced with layered lighting, tumbled glass, and black gravel for added depth and visual movement. Offered in four backer finishes—Neutral Brick, Weathered Concrete, Herringbone, and Black—it integrates seamlessly into a variety of design styles.

  • Built-in electric firebox with realistic full-depth flames
  • Revillusion® flame effect for a natural fire appearance
  • Realogs® crafted from real wood with internal illumination
  • Enhanced ember bed with glass and black gravel
  • Four backer finishes for flexible design integration

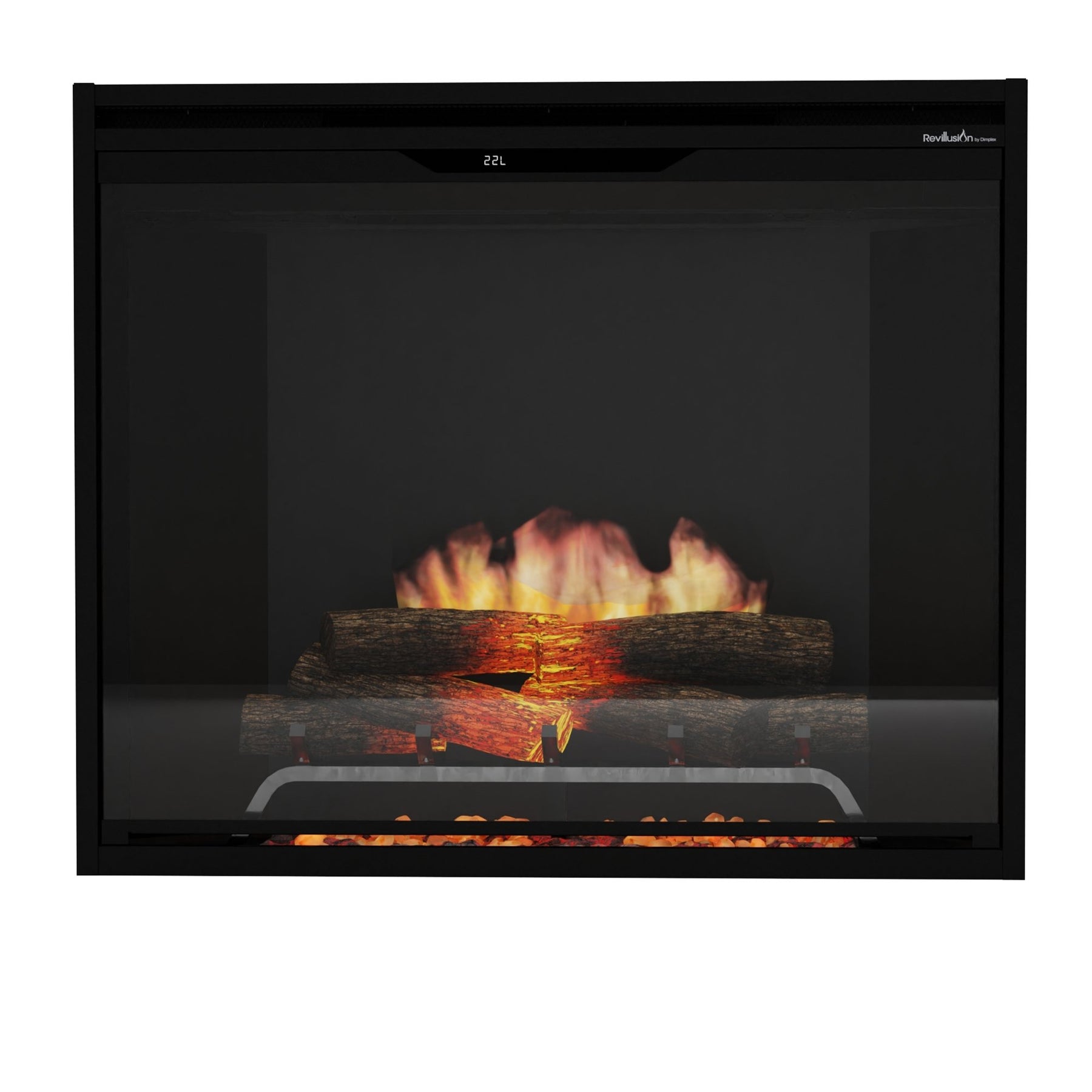

Dimplex Revillusion 36" Portrait Built-in Firebox - Black

Revillusion firebox with realistic flames, customizable design.

View Inspiration ->

Interactive Fit Checker

Will This Fit My Fireplace?

Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.

1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.

Measure the usable finished opening—not the outside brick, stone, tile or mantel.

2
Your Fit ResultBased on the measurements entered.
?
Enter all four measurements

We’ll compare your opening with the minimum space required.

MeasurementMinimumYour openingDifference
Width (front)36 5/8""
Width (back)36 5/8""
Height30 5/8""
Depth12 1/2""
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body Illustration

The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.

Your openingEnter measurements
Minimum required36 5/8"" W × 30 5/8"" H
Extra space
Your opening Minimum required Fireplace body

How to Measure Your Fireplace Opening

1Front width

Measure the narrowest inside width at the front.

2Back width

Check whether the opening narrows toward the back.

3Height

Measure from the hearth to the lowest point above.

4Depth

Measure to the shallowest obstruction inside.

Dimensions & Installation Information

Review the official product specifications and installation manual before ordering.

Important: This tool is for preliminary product selection. Final compatibility, clearances, electrical requirements and installation must be confirmed using the manufacturer’s current instructions and the actual conditions in your home.

Key Features

Designed for performance, simplicity, and everyday comfort.

A premium electric fireplace experience with refined design, modern controls, and dependable performance.

Adjustable flame brightness

Full-depth flames with clear, immersive visibility

Handcrafted Realogs with lifelike glowing LED lighting

Classic fireplace look that never goes out of style

Product Specifications

Technical specifications for planning, installation, and product comparison.

Fit and finish

Dimensions

Overall size

W × H × D
Width
37 1/8"
Height
31"
Depth
12 1/8"

Framing / rough opening

Required opening
Framing width
36 5/8"
Framing height
30 5/8"
Framing depth
12 1/2"

Performance

Heating and electrical

Maximum heat output
8,786 BTU
Maximum wattage
2,575 W
Heating area
1,000 sq. ft.
Voltage
120V / 208V / 240V
Amperage
10.8/9.5/10.7
Hardwire
Yes
Plug-in
Yes

Project planning

Installation and viewing

Installation type
Insert
Viewing style
Front View
Best For
Traditional Fireplace Designs
Indoor / outdoor rating
Indoor Only
Heater location
Front Vent

Everyday experience

Controls and experience

Flame Colours
Red, Blue
Remote
Yes
Media type
Logs

Model information

Product details

Series
Revillusion
Size
36"
Size range
A. Compact (Under 50")
Shipping weight
102.3 lbs

Coverage

Warranty

2 Year Limited

Product Resources

Manuals & Documents

Access installation details, measurements, framing requirements, and product documentation before you buy.

Delivery & Pickup

Qualifying orders under $1,999 ship across Canada for a $199 flat rate, while qualifying orders $1,999+ receive free standard shipping. Free local delivery is available on qualifying orders $999+ within our Burlington-area delivery zone. Select oversized products and remote destinations may require a custom freight quote. Pickup may also be available by arrangement for eligible orders.

Warranty & Protection

This product is sold by an authorized dealer and is backed by manufacturer warranty support. Optional protection plans can be selected above. Protection plan coverage is for parts only and does not include labour, diagnostics, installation, removal, reinstallation, service calls, or shipping.

Which Size Is Right For You?

Use our Fireplace Size Calculator to find the perfect fit for your space.

Launch Calculator

Need help choosing?

Our experts are here to help you find the perfect fireplace.

Contact an Expert

Frequently Asked Questions

How much heat does this fireplace provide?

This model provides supplemental heat for approximately 1,000 sq ft. Actual performance can vary based on room layout, insulation, ceiling height, and wiring setup.

What voltage does this fireplace use?

This fireplace is designed for 120v/208v/240v power. Always confirm wiring requirements with the installation manual or a licensed electrician before installation.

How is this fireplace installed?

This model is designed for insert installation. Review the product manual for framing, clearance, and finishing requirements before starting your project.

Can this fireplace be installed under a TV?

Many electric fireplaces can be installed below a TV, but clearances vary by model and installation type. Always confirm the manual, mantel clearances, and TV manufacturer guidance before installing.
