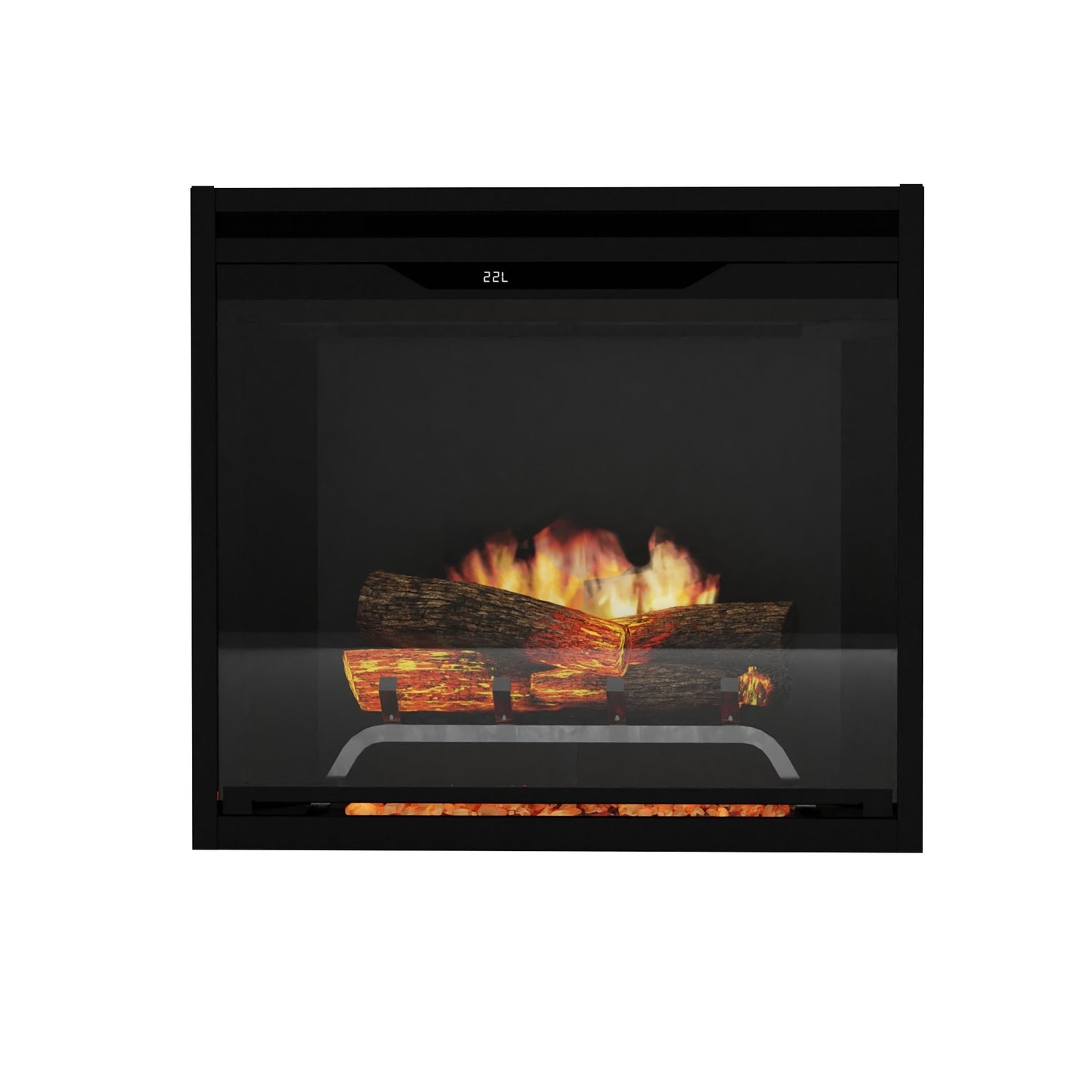

Front View
Supplemental heat output; actual output depends on power and settings.
Logs
Remote: Yes
INCLUDED WITH YOUR FIREPLACE
What's included

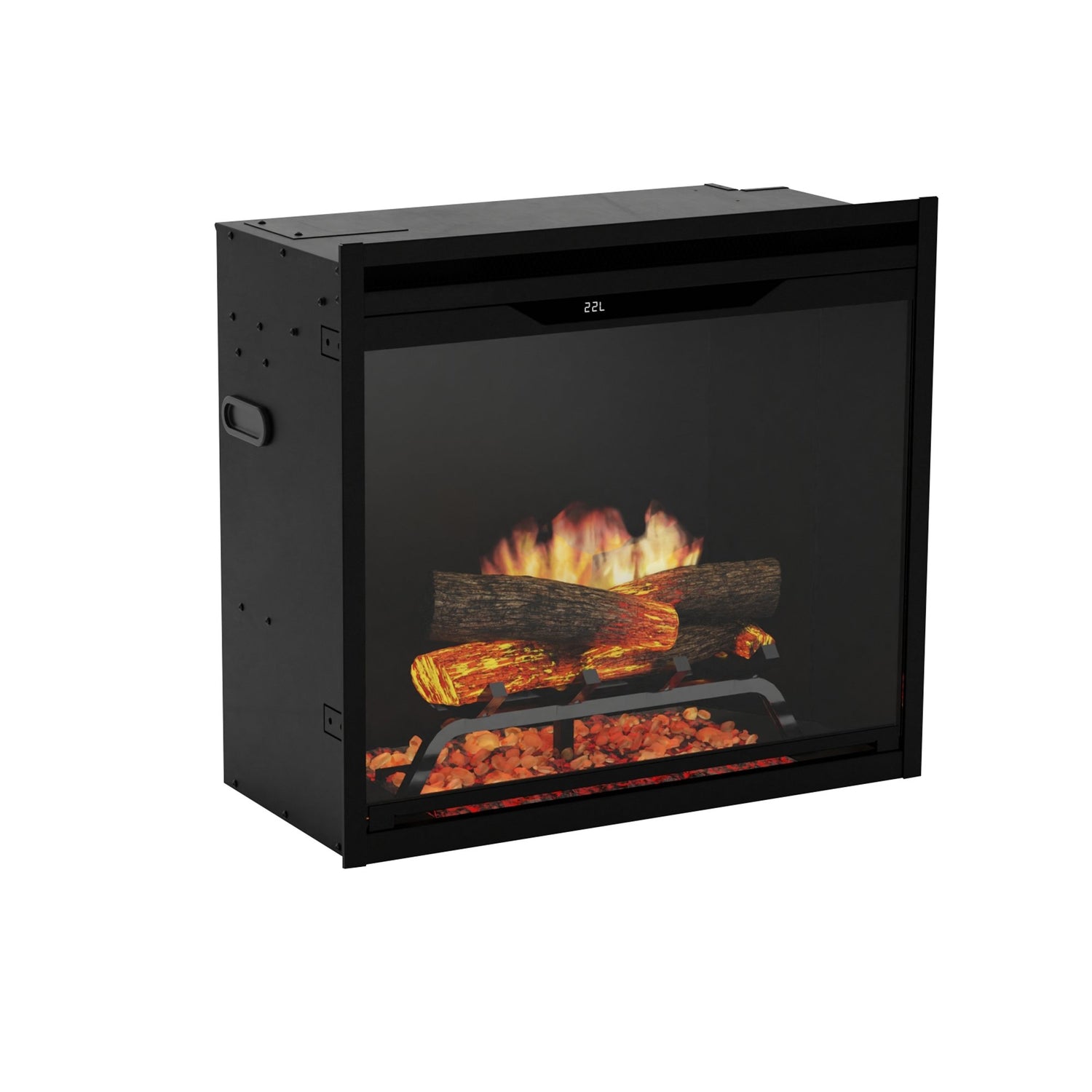

Revillusion 24" Built-in Firebox
Package contents for this model
FIREPLACE & FINISHING
- Dimplex Revillusion Deluxe 24-inch electric insert with integrated heater
- Pre-installed Realogs decorative log-and-grate assembly with black firebox interior

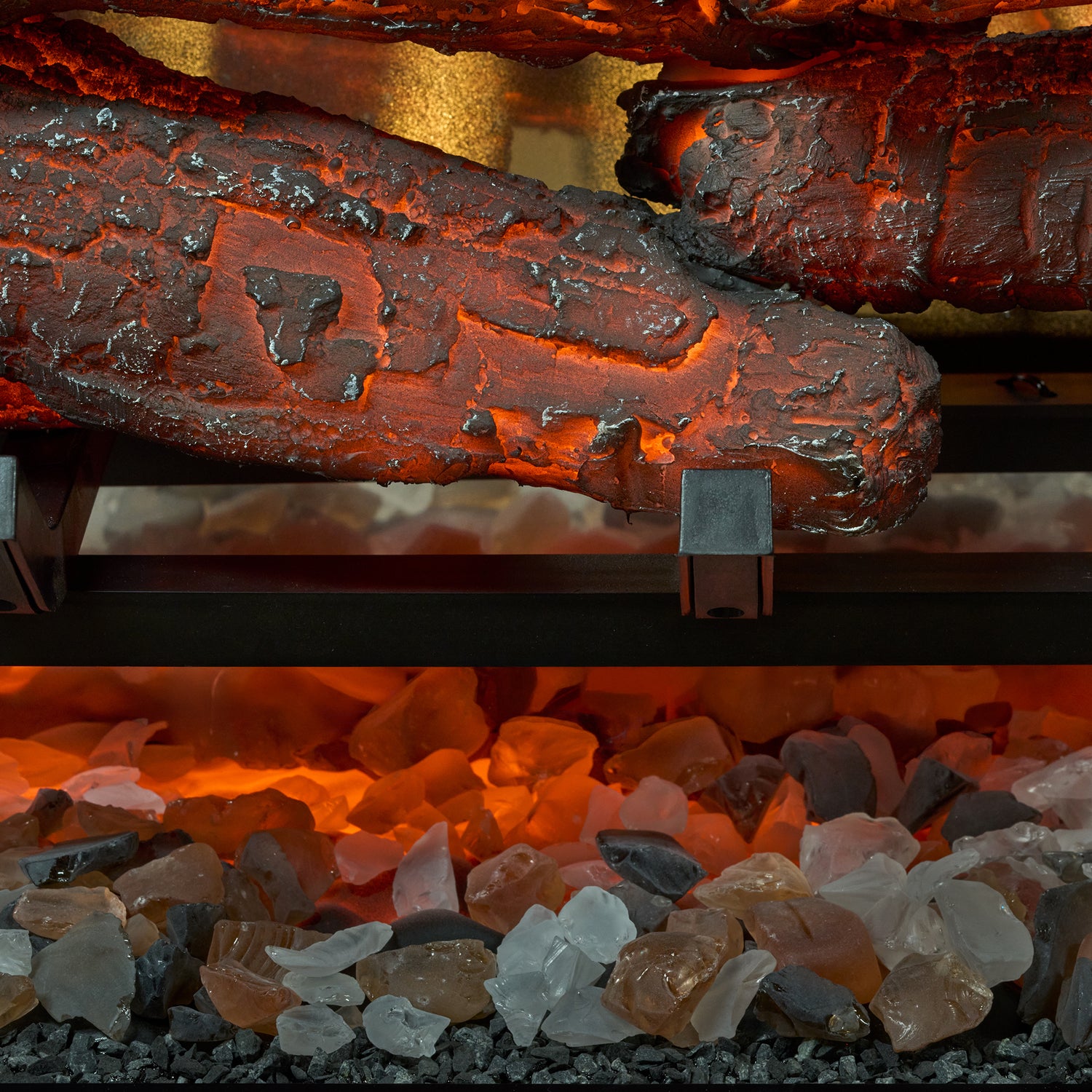

- Tumbled glass ember media
- Front viewing glass
- Glass finishing trim
- User's and installation guide
CONTROLS & INSTALLATION
- Mood-maker remote control
- Factory-attached 120V grounded power cord
- Hardwiring conversion bracket
- Glass brackets, door pins, nuts and screws
View Full Technical Specifications
Fit and finish
Dimensions
Overall size
W × H × D- Width
- 25 1/8"
- Height
- 22 7/8"
- Depth
- 12 1/8"
Framing / rough opening
Required opening- Framing width
- 24 5/8"
- Framing height
- 22 3/8"
- Framing depth
- 12 1/2"
Performance
Heating and electrical
- Maximum heat output
- 5,118 BTU
- Maximum wattage
- 1,500 W
- Heating area
- 1,000 sq. ft.
- Voltage
- 120V
- Amperage
- See manufacturer documentation for voltage-specific current draw.
- Hardwire
- Yes
- Plug-in
- Yes
Project planning
Installation and viewing
- Installation type
- Insert
- Viewing style
- Front View
- Best For
- Traditional Fireplace Designs
- Indoor / outdoor rating
- Indoor Only
- Heater location
- Front Vent
Everyday experience
Controls and experience
- Flame Colours
- Red, Blue
- Remote
- Yes
- Media type
- Logs
Model information
Product details
- Series
- Revillusion
- Size
- 24"
- Size range
- A. Compact (Under 50")
- Shipping weight
- 58 lb
Coverage
Warranty
2 Year Limited
About This Fireplace

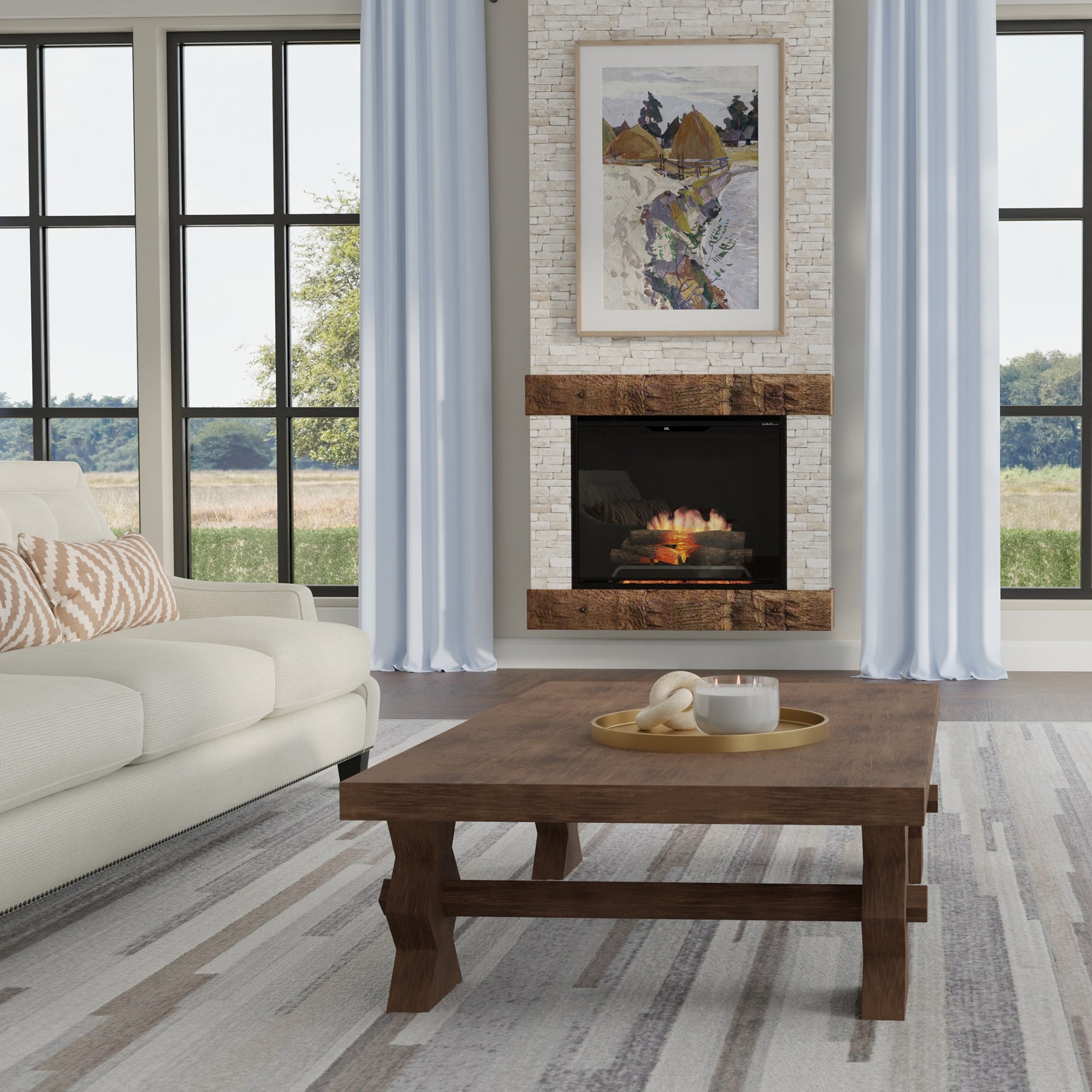

The Revillusion® Built-In Electric Firebox offers a clean, built-in solution with enhanced flame realism and a true full-depth appearance. Designed for feature walls and traditional fireplace openings, it integrates seamlessly into residential spaces.
Featuring Revillusion® flame technology, it produces larger, brighter flames with added depth for a more natural look. The recessed firebox creates a classic, finished appearance, while durable LED lighting provides low-maintenance operation.
- Built-in electric firebox for residential applications
- Revillusion® flames with realistic depth and brightness
- Recessed installation for a seamless finish
- Supplemental heat for added comfort
- Long-lasting LED flame system
Will This Fit My Fireplace?
Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.
Measure the usable finished opening—not the outside brick, stone, tile or mantel.
We’ll compare your opening with the minimum space required.
The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.
Frequently Asked Questions
Product, delivery and warranty answers in one place.
How much supplemental heat does this fireplace provide?
Maximum manufacturer-listed output: 5,118 BTU.
Manufacturer-listed heating area: 1,000 sq ft.
Actual heat output and room coverage depend on electrical configuration, room conditions and installation.
Can I install this fireplace below a TV?
Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.
What is included with this fireplace?
Verified package contents: Dimplex Revillusion Deluxe 24-inch electric insert with integrated heater, Pre-installed Realogs decorative log-and-grate assembly with black firebox interior, Tumbled glass ember media, Front viewing glass, Glass finishing trim, Mood-maker remote control, Factory-attached 120V grounded power cord, Hardwiring conversion bracket, Glass brackets, door pins, nuts and screws, User's and installation guide. Optional media and accessories are sold separately unless specifically stated.
Can I check whether this fireplace fits my existing opening?
Yes. Compare your measured finished opening against this model's entered minimum requirements using our fit checker. Always confirm against the manufacturer's instructions.
How do shipping and local delivery work?
For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.
Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.
When will my fireplace arrive?
Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.
Can I pick up my fireplace in Burlington?
Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.
What warranty applies to this model?
The product's listed manufacturer warranty is 2 Year Limited.
Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.
What if my fireplace arrives damaged?
Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
