SimpliFire 30" Mission Door Front - FT-MISSION-30
$530.90
Financing Available
Flexible checkout options
Authorized Dealer
Manufacturer-backed support
30-Day Returns
Unopened returns made simple
Need Help Choosing?
Call 905-607-1569
Now Open
Burlington Showroom
Experience popular fireplaces in person
Expert
Fireplace Advice
Real fireplace expertise
Canada-Wide Shipping
$199 flat rate under $1,999 • Free on qualifying orders $1,999+
Qualifying standard orders
Authorized Dealer
Warranty You Can Trust
Backed by the manufacturer
The SimpliFire SF-INS30 Traditional Electric Fireplace Insert is built to update an existing fireplace opening with a traditional log-and-flame presentation and straightforward electric operation. The 120V unit is rated at 1,500W and 12.5A, delivers up to 5,000 BTU, and includes a multifunction remote.
The SF-INS30 supports either plug-in or hardwired connection and is intended for indoor use. Appliance dimensions are 29 7/8" W × 20 1/2" H × 11 1/4" D. SimpliFire specifies a minimum existing-fireplace opening of 30" front width, 23" rear width, 20 5/8" height and 11 3/8" depth.

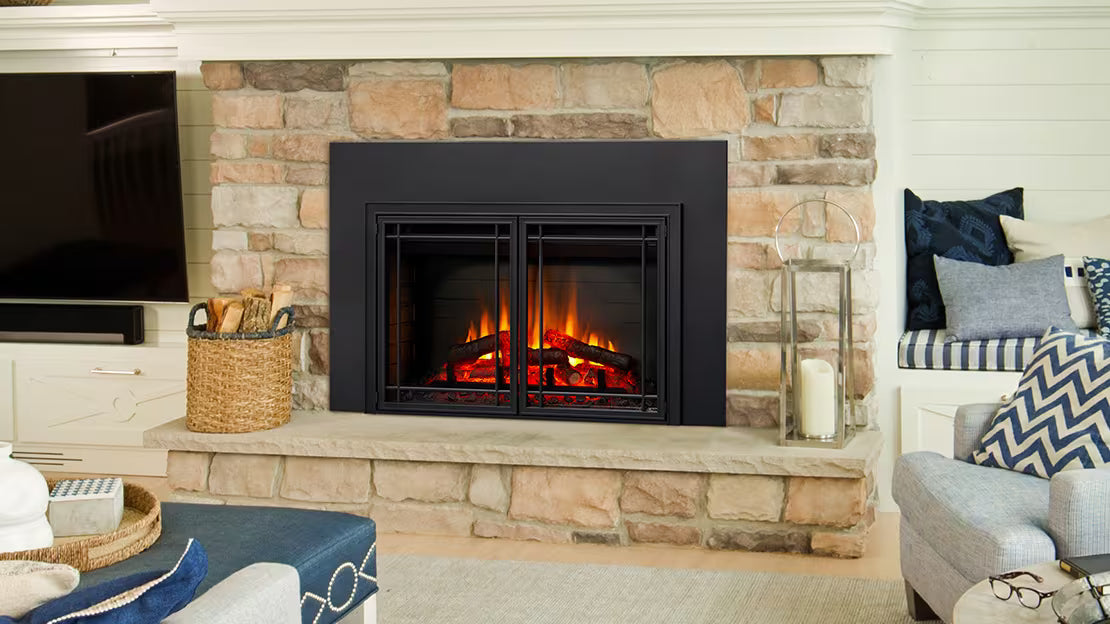

The SimpliFire Electric Fireplace Insert offers a classic look with glowing logs, LED flames, and heat for spaces up to 400 sq ft.
View Inspiration ->Interactive Fit Checker
Will This Fit My Fireplace?
Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.
1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.
Measure the usable finished opening—not the outside brick, stone, tile or mantel.
2
Your Fit ResultBased on the measurements entered.
Enter all four measurements
We’ll compare your opening with the minimum space required.
MeasurementMinimumYour openingDifference
Width (front)30""——
Width (back)23""——
Height20 5/8""——
Depth11 3/8""——
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body
Illustration
The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.
Your openingEnter measurements
Minimum required30"" W × 20 5/8"" H
Extra space—
Your opening
Minimum required
Fireplace body
How to Measure Your Fireplace Opening
1Front width
Measure the narrowest inside width at the front.
2Back width
Check whether the opening narrows toward the back.
3Height
Measure from the hearth to the lowest point above.
4Depth
Measure to the shallowest obstruction inside.
Dimensions & Installation Information
Review the official product specifications and installation manual before ordering.
Important: This tool is for preliminary product selection. Final compatibility, clearances, electrical requirements and installation must be confirmed using the manufacturer’s current instructions and the actual conditions in your home.
Key Features
Designed for performance, simplicity, and everyday comfort.
A premium electric fireplace experience with refined design, modern controls, and dependable performance.
Fully recessed into a wall or mantel for a clean, zero-clearance installation.
The supplemental heater effectively warms spaces up to 400 sq ft.
Operates with or without heat.
Hardwire or plug-in.
Product Specifications
Technical specifications for planning, installation, and product comparison.
Fit and finish
Dimensions
Overall size
W × H × D- Width
- 29 7/8"
- Height
- 20 1/2"
- Depth
- 11 1/4"
Performance
Heating and electrical
- Maximum heat output
- 5,000 BTU
- Maximum wattage
- 1,500 W
- Heating area
- 400 sq. ft.
- Voltage
- 120V
- Amperage
- 12.5
- Hardwire
- Yes
- Plug-in
- Yes
Project planning
Installation and viewing
- Installation type
- Insert
- Viewing style
- Front View
- Best For
- Existing fireplace openings
- Indoor / outdoor rating
- Indoor Only
- Heater location
- Front Vent
- Installation configurations
- Front View
Everyday experience
Controls and experience
- Remote
- Yes
- Media type
- Logs
Model information
Product details
- Size
- 30"
- Size range
- A. Compact (Under 50")
- Shipping weight
- 54 lbs
Coverage
Warranty
2 Year Limited
Product Resources
Manuals & Documents
Access installation details, measurements, framing requirements, and product documentation before you buy.
Delivery & Pickup
Qualifying orders under $1,999 ship across Canada for a $199 flat rate, while qualifying orders $1,999+ receive free standard shipping. Free local delivery is available on qualifying orders $999+ within our Burlington-area delivery zone. Select oversized products and remote destinations may require a custom freight quote. Pickup may also be available by arrangement for eligible orders.
Warranty & Protection
This product is sold by an authorized dealer and is backed by manufacturer warranty support. Optional protection plans can be selected above. Protection plan coverage is for parts only and does not include labour, diagnostics, installation, removal, reinstallation, service calls, or shipping.
Which Size Is Right For You?
Use our Fireplace Size Calculator to find the perfect fit for your space.
Launch CalculatorAvailable Sizes
Complete The Look
Recommended accessories for your fireplace
Frequently Asked Questions
How much heat does this fireplace provide?
This model provides supplemental heat for approximately 400 sq ft. Actual performance can vary based on room layout, insulation, ceiling height, and wiring setup.
What voltage does this fireplace use?
This fireplace is designed for 120v power. Always confirm wiring requirements with the installation manual or a licensed electrician before installation.
How is this fireplace installed?
This model is designed for insert installation. Review the product manual for framing, clearance, and finishing requirements before starting your project.
Can this fireplace be installed under a TV?
Many electric fireplaces can be installed below a TV, but clearances vary by model and installation type. Always confirm the manual, mantel clearances, and TV manufacturer guidance before installing.
