PLAN WITH CONFIDENCE

Will It Fit Your Space?

Check framing, power and installation details before you order.

LOG SET DIMENSIONS

Overall product dimensions

25 5/8"
Width
19"
Height
13"
Depth

Log set placement

Log sets sit inside a suitable existing opening; framing for a built-in fireplace does not apply to the log set itself. Confirm compatibility in the manufacturer's instructions.

View installation manual

ELECTRICAL REQUIREMENTS

Electrical requirements for this model

120V

Maximum rated power
1,500 W
Current draw (amps)
12.5 A
Connection
Plug-in capable

INSTALLATION TYPE

Installation options for this model

Insert

Confirm framing, electrical requirements and final clearances against the manufacturer's current installation instructions before installation.

INCLUDED WITH YOUR FIREPLACE

What's included

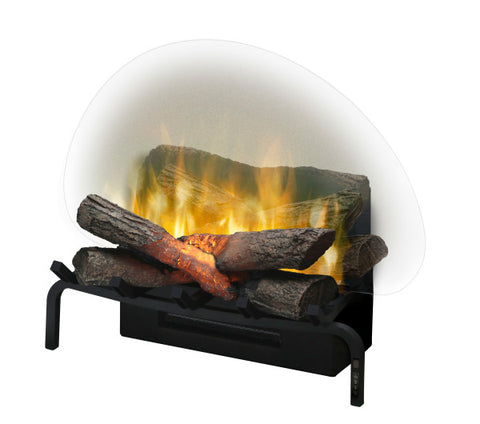

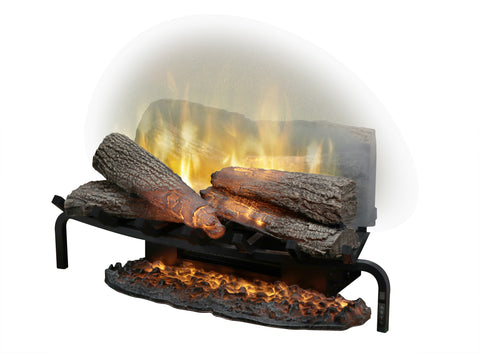

Dimplex 25" Revillusion Electric Fireplace Log Set - RLG25

25" Revillusion Electric Fireplace Log Set

Package contents for this model

LOG SET & MEDIA

  • Dimplex Revillusion 25-inch electric log set with integrated heater
  • Hand-painted glowing Realogs and metal grate

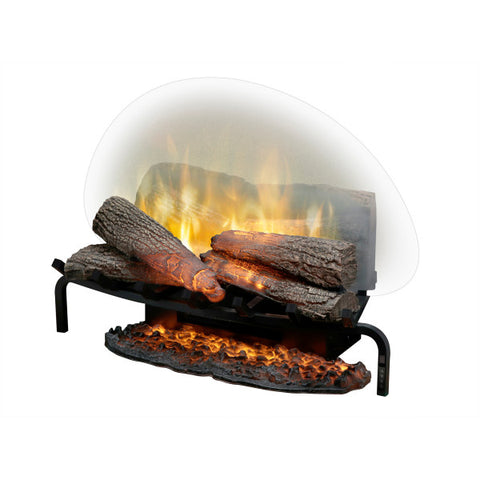

  • Glowing ash/ember bed mat
  • Mirage translucent flame panel

CONTROLS & INSTALLATION

  • Remote control
  • Factory-attached 120V grounded plug-in power cord
View Full Technical Specifications

Fit and finish

Dimensions

Overall size

W × H × D
Width
25 5/8"
Height
19"
Depth
13"

Performance

Heating and electrical

Maximum heat output
5,118 BTU
Maximum wattage
1,500 W
Heating area
1,000 sq. ft.
Voltage
120V
Amperage
See manufacturer documentation for voltage-specific current draw.
Plug-in
Yes

Project planning

Installation and viewing

Installation type
Insert
Viewing style
Front View
Best For
Existing fireplace openings
Indoor / outdoor rating
Indoor Only
Heater location
Front Vent

Everyday experience

Controls and experience

Remote
Yes
Media type
Logs

Model information

Product details

Series
Revillusion
Size
25"
Size range
A. Compact (Under 50")
Shipping weight
18.5 lbs

Coverage

Warranty

2 Year Limited

About This Fireplace

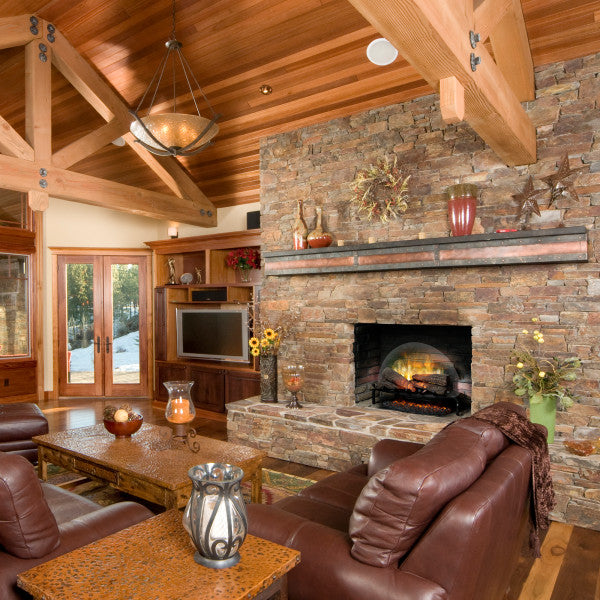

Revillusion® transforms your existing fireplace into a realistic electric fireplace insert with unmatched depth and clarity. Designed to replicate the look of a true wood-burning fire, flames appear larger, brighter, and more natural—rising from within the logs for an authentic, full-depth viewing experience.

Patented Thruview™ technology allows you to see through the flames to the back of the firebox, while the Mirage Flame Panel eliminates reflections for a crisp, lifelike display. Ideal for homeowners upgrading a traditional fireplace, this plug-in electric log set delivers both ambiance and supplemental heat, with the flexibility to operate heat independently for year-round use.

  • Realistic electric fireplace insert for existing fireplaces
  • Revillusion® flames with full-depth, natural appearance
  • Thruview™ technology for enhanced realism
  • Mirage Flame Panel for a clear, reflection-free display
  • Independent heat control for all-season comfort
Will This Fit My Fireplace?

Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.

1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.

Measure the usable finished opening—not the outside brick, stone, tile or mantel.

2
Your Fit ResultBased on the measurements entered.
?
Enter all four measurements

We’ll compare your opening with the minimum space required.

MeasurementMinimumYour openingDifference
Width (front)26"——
Width (back)26"——
Height22"——
Depth15"——
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body Illustration

The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.

Your openingEnter measurements
Minimum required26" W × 22" H
Extra space—
Your opening Minimum required Fireplace body

Frequently Asked Questions

Product, delivery and warranty answers in one place.

How much supplemental heat does this fireplace provide?

Maximum manufacturer-listed output: 5,118 BTU.

Manufacturer-listed heating area: 1,000 sq ft.

Actual heat output and room coverage depend on electrical configuration, room conditions and installation.

Can I install this fireplace below a TV?

Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.

What is included with this fireplace?

Verified package contents: Dimplex Revillusion 25-inch electric log set with integrated heater, Hand-painted glowing Realogs and metal grate, Glowing ash/ember bed mat, Mirage translucent flame panel, Remote control, Factory-attached 120V grounded plug-in power cord. Optional media and accessories are sold separately unless specifically stated.

Can I check whether this fireplace fits my existing opening?

Yes. Compare your measured finished opening against this model's entered minimum requirements using our fit checker. Always confirm against the manufacturer's instructions.

How do shipping and local delivery work?

For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.

Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.

When will my fireplace arrive?

Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.

Can I pick up my fireplace in Burlington?

Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.

What warranty applies to this model?

The product's listed manufacturer warranty is 2 Year Limited.

Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.

What if my fireplace arrives damaged?

Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
