PLAN WITH CONFIDENCE

Will It Fit Your Space?

Check framing, power and installation details before you order.

DIMENSIONS & FRAMING

Overall product dimensions

20 1/8"
Width
9 1/2"
Height
12"
Depth

FRAMING DIMENSIONS

20 3/8"
Width
9 1/2"
Height
12 1/4"
Min. depth
View installation manual

ELECTRICAL REQUIREMENTS

Electrical requirements for this model

120V

Maximum rated power
230 W
Current draw (amps)
1.9 A
Connection
Plug-in capable

INSTALLATION TYPE

Installation options for this model

Insert

Confirm framing, electrical requirements and final clearances against the manufacturer's current installation instructions before installation.

INCLUDED WITH YOUR FIREPLACE

What's included

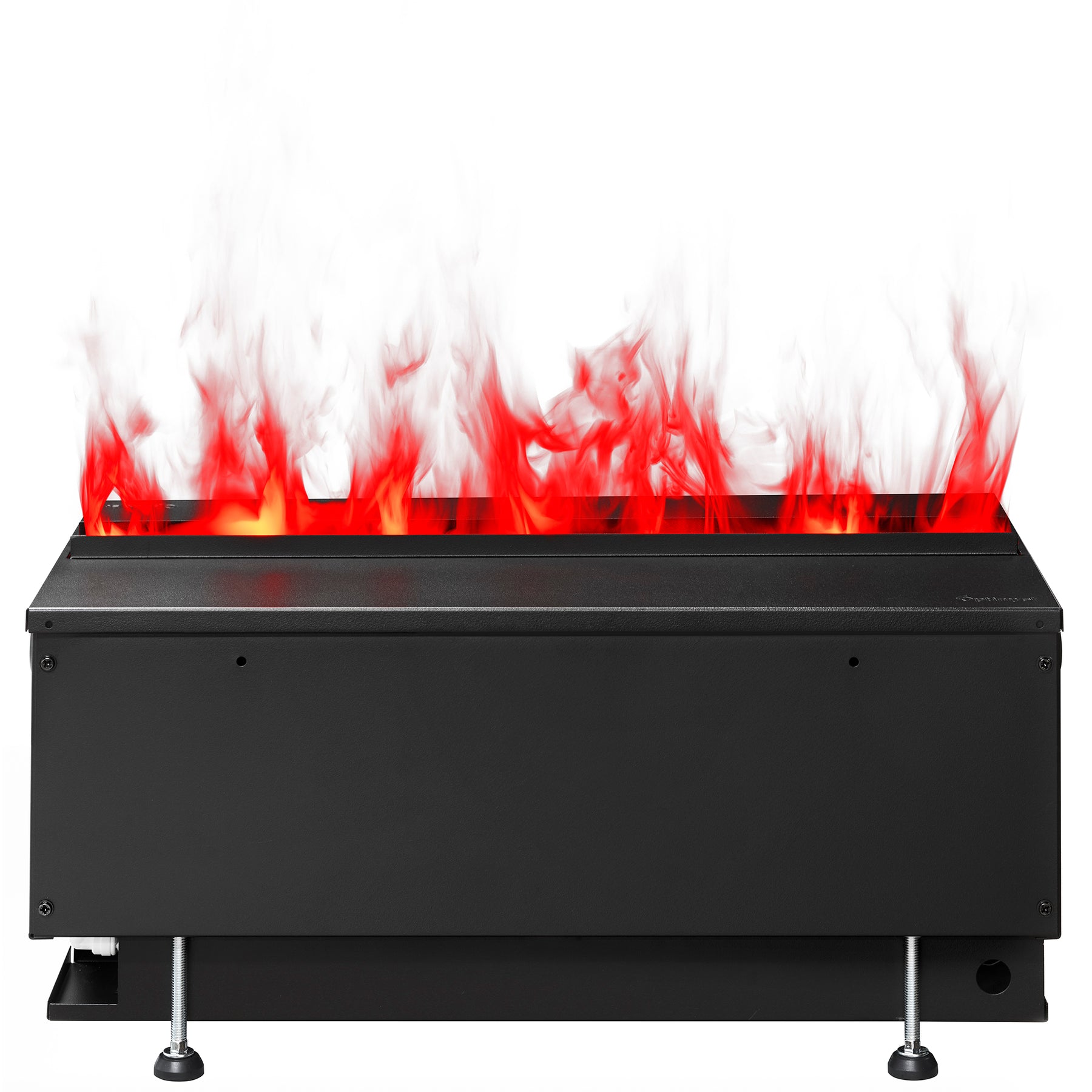

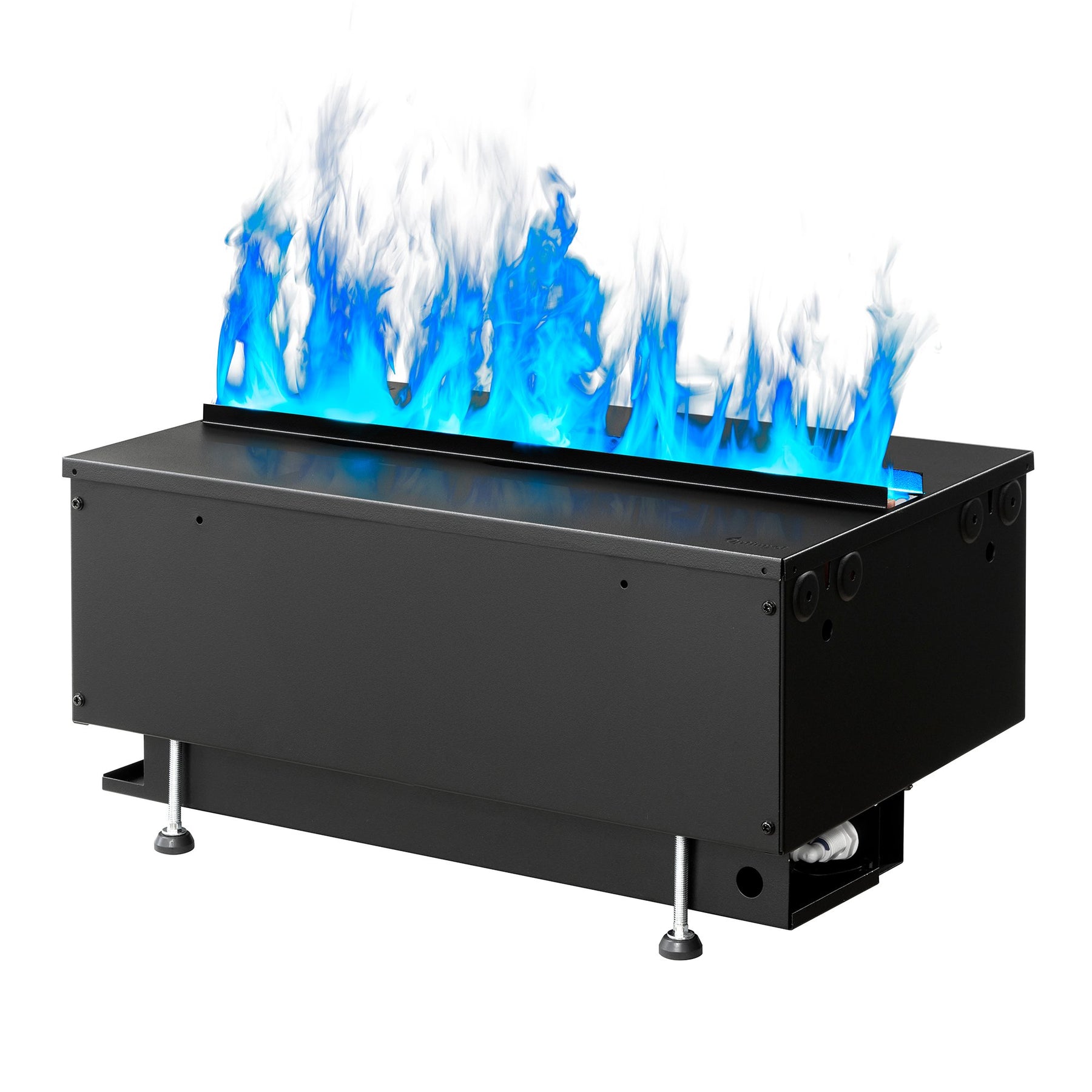

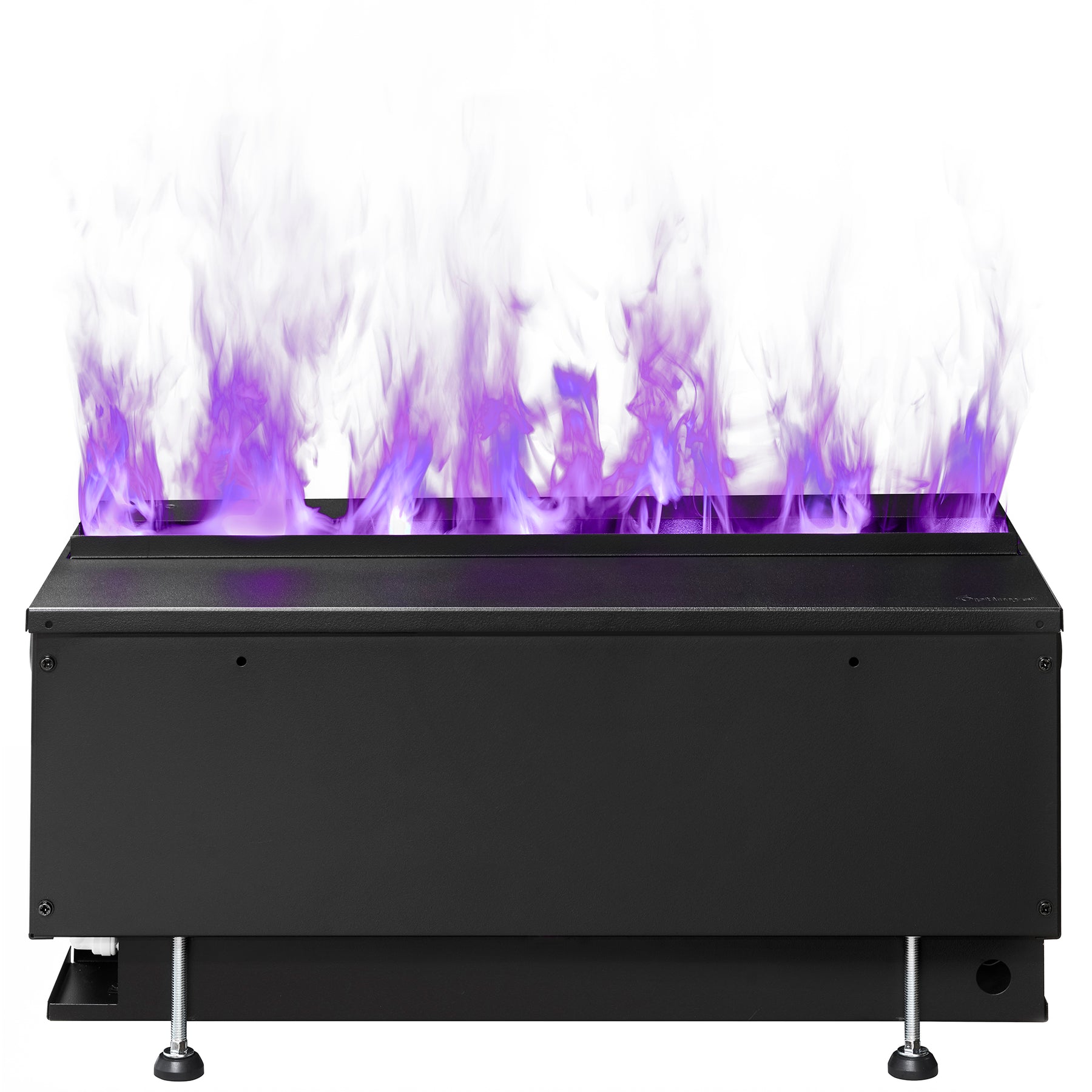

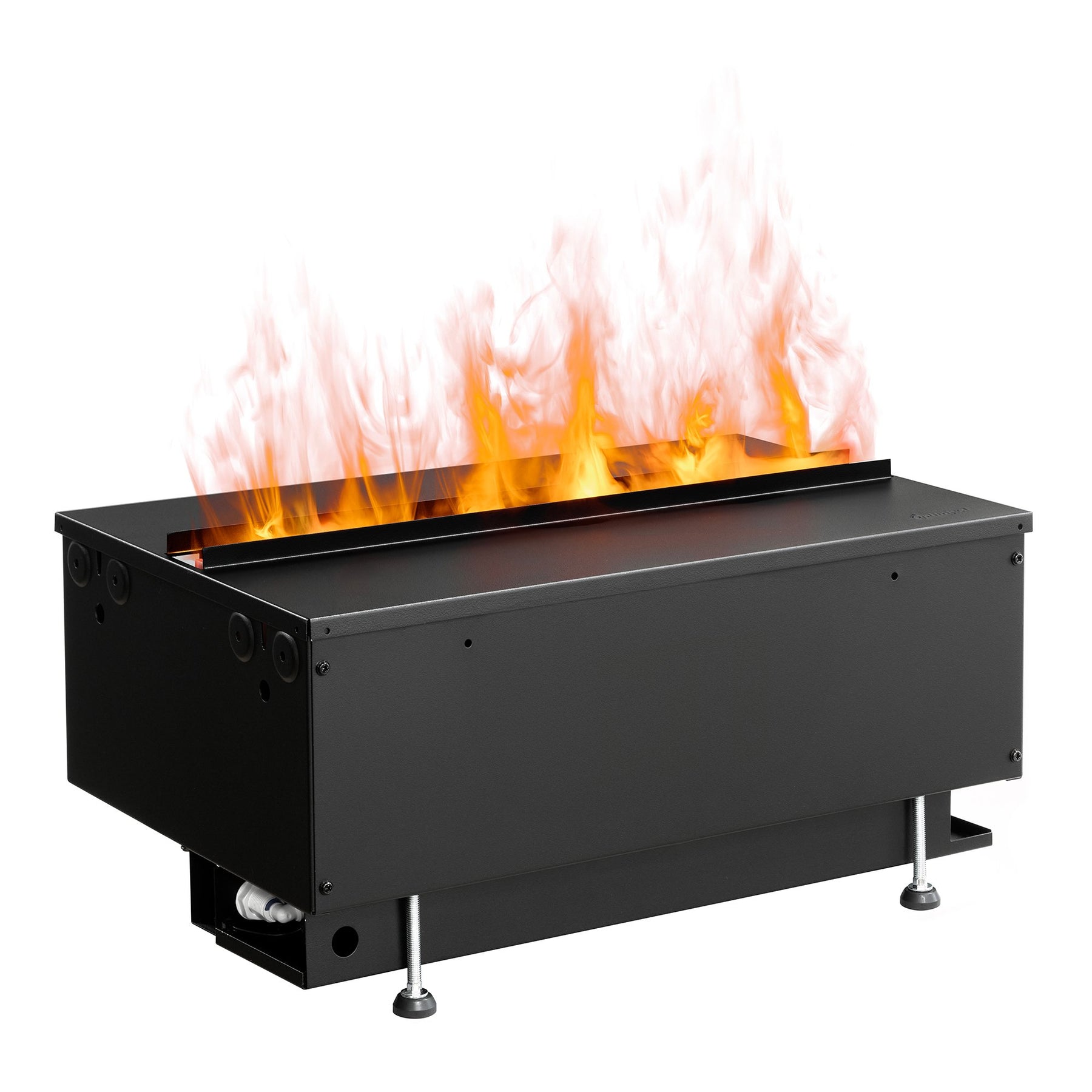

Dimplex Optimyst RGB Cassette 20" Built-In Water Vapor Fireplace - CDFI500-PRO-RGB

Optimyst RGB Cassette 20" Built-In Water Vapor Fireplace

Package contents for this model

CASSETTE & MEDIA

  • Dimplex Optimyst Pro RGB 500 electric vapor cassette (flame-only; no heater)
  • Three ultrasonic transducers (two pre-installed, one spare)
  • Refillable water reservoir
  • Flame blockers (2)
  • Slotted flame spacers (3)
  • Replacement leak-detector pads (3)
  • Inline water filter and plumbing components

CONTROLS & INSTALLATION

  • Remote control
  • Installation and user's manual
View Full Technical Specifications

Fit and finish

Dimensions

Overall size

W × H × D
Width
20 1/8"
Height
9 1/2"
Depth
12"

Framing / rough opening

Required opening
Framing width
20 3/8"
Framing height
9 1/2"
Framing depth
12 1/4"

Performance

Heating and electrical

Maximum wattage
230 W
Heating area
N / A
Voltage
120V
Amperage
See manufacturer documentation for voltage-specific current draw.
Plug-in
Yes

Project planning

Installation and viewing

Installation type
Insert
Viewing style
Multi-sided
Best For
Custom Fireplace Builds
Heater location
N/A

Everyday experience

Controls and experience

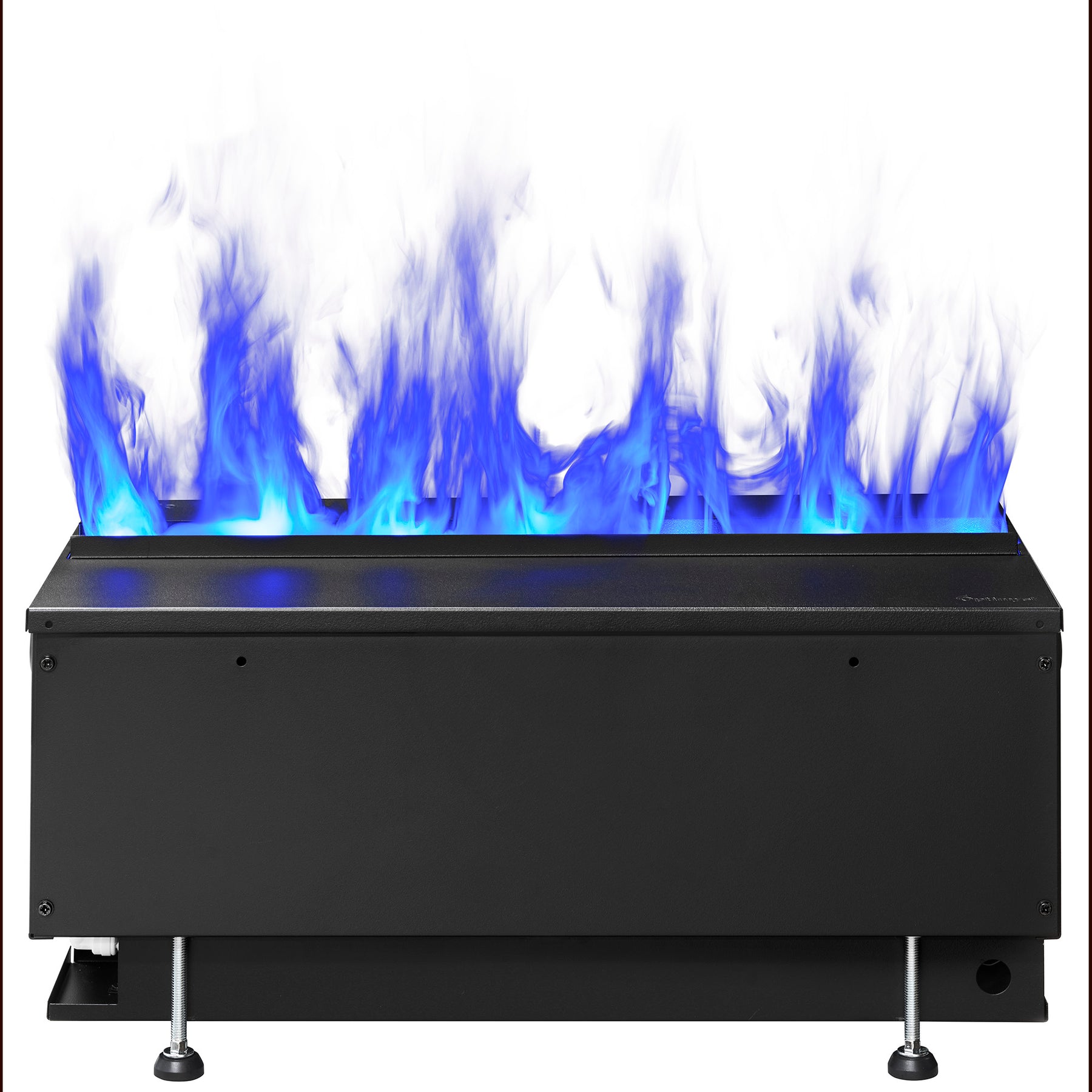

Flame Colours
Orange, Blue, Violet, Red, Aquamarine
Smart / app control
Yes — Flame Connect app control
Remote
Yes
Media type
Media Plate

Model information

Product details

Series
Optimyst
Size
20"
Size range
A. Compact (Under 50")
Shipping weight
22 lbs

Coverage

Warranty

2 Year Limited

About This Fireplace

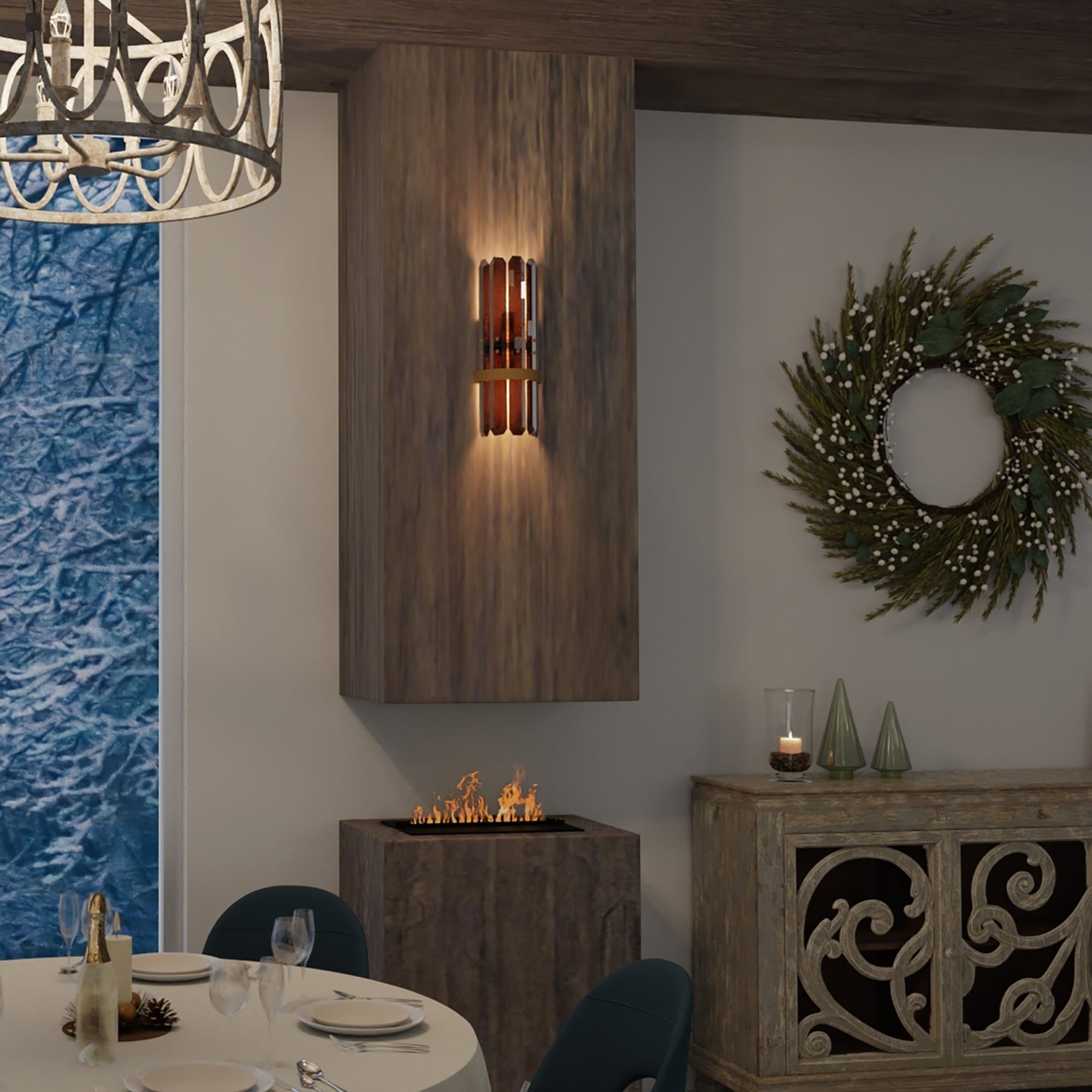

The Dimplex CDFI500-PRO-RGB Opti-Myst® Cassette is a premium built-in electric fireplace designed for projects where realism and design flexibility matter most. Instead of using a traditional flat flame effect, the Opti-Myst system creates a three-dimensional flame and smoke illusion using water vapour and LED lighting, giving it a more natural, lifelike appearance than many standard electric fireplaces.

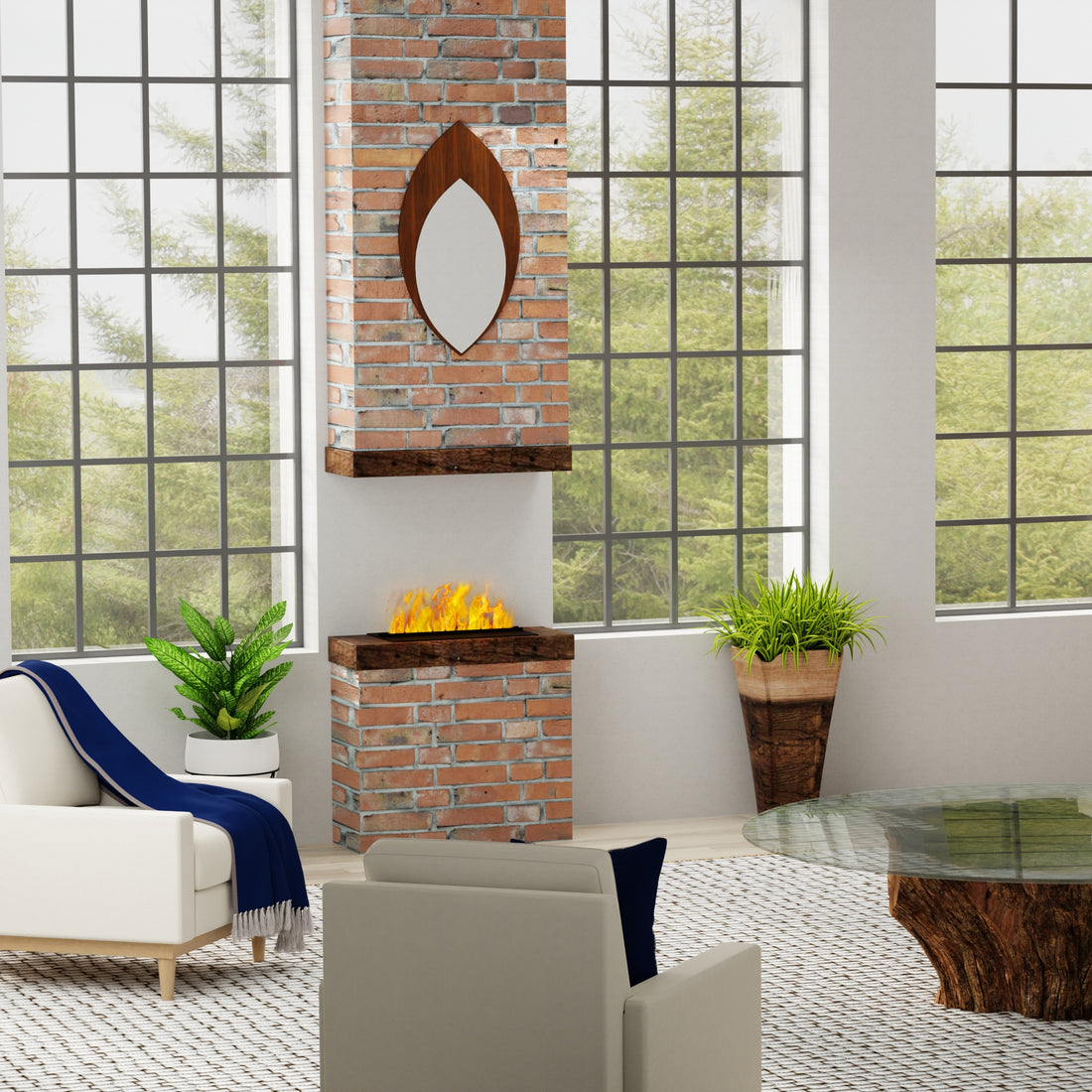

Its compact 20" cassette design makes it ideal for custom feature walls, open-concept installations, media walls, and commercial-style fireplace designs. The RGB lighting adds a modern layer of customization, allowing the flame presentation to shift beyond the classic orange glow for a more dramatic or contemporary look. It can be installed as a standalone feature or combined with additional cassettes to create a longer, custom fireplace opening.

This model does not provide heat, which makes it best suited for ambience-focused spaces where visual impact is the priority. With tap-water operation, low-energy LED lighting, and no venting or gas line required, it offers a clean and flexible alternative to traditional fireplaces.

Overall, the CDFI500-PRO-RGB is a strong choice for homeowners, designers, and builders looking to create a high-end custom fireplace feature with one of the most realistic electric flame effects available. Its biggest strengths are its realism, flexible installation options, and premium visual presentation.

Frequently Asked Questions

Product, delivery and warranty answers in one place.

How much supplemental heat does this fireplace provide?

Manufacturer-listed heating area: N/A.

Actual heat output and room coverage depend on electrical configuration, room conditions and installation.

Can I install this fireplace below a TV?

Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.

What is included with this fireplace?

Verified package contents: Dimplex Optimyst Pro RGB 500 electric vapor cassette (flame-only; no heater), Remote control, Three ultrasonic transducers (two pre-installed, one spare), Refillable water reservoir, Flame blockers (2), Slotted flame spacers (3), Replacement leak-detector pads (3), Inline water filter and plumbing components, Installation and user's manual. Optional media and accessories are sold separately unless specifically stated.

How do shipping and local delivery work?

For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.

Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.

When will my fireplace arrive?

Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.

Can I pick up my fireplace in Burlington?

Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.

What warranty applies to this model?

The product's listed manufacturer warranty is 2 Year Limited.

Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.

What if my fireplace arrives damaged?

Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.

Downloads & Resources

Manufacturer documents for planning and installation.

Need help planning?

Speak with our fireplace specialists about compatibility and installation.

Get expert advice →

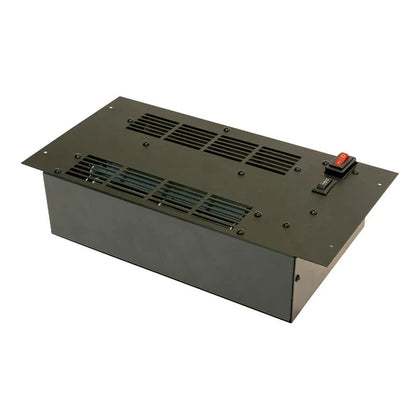

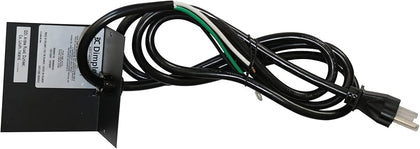

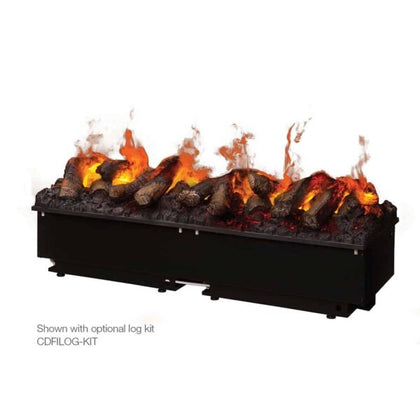

Optional Media & Accessories

Explore additional decorative media and model-specific add-ons. Some options replace included media; check what's included before ordering.
