PLAN WITH CONFIDENCE

Will It Fit Your Space?

Check framing, power and installation details before you order.

DIMENSIONS & FRAMING

Overall product dimensions

101 3/8"
Width
16 1/2"
Height
5 3/4"
Depth

FRAMING DIMENSIONS

100 5/8"
Width
16"
Height
3 1/2"
Min. depth
View installation manual

ELECTRICAL REQUIREMENTS

Electrical requirements for this model

120V / 240V

Maximum rated power
2,500 W
Current draw (amps)
120 V: 12.5 A 240 V: 10.4 A
Connection
Hardwire capablePlug-in capable

INSTALLATION TYPE

Installation options for this model

Recessed

  • Front / Single-Sided

Confirm framing, electrical requirements and final clearances against the manufacturer's current installation instructions before installation.

INCLUDED WITH YOUR FIREPLACE

What's included

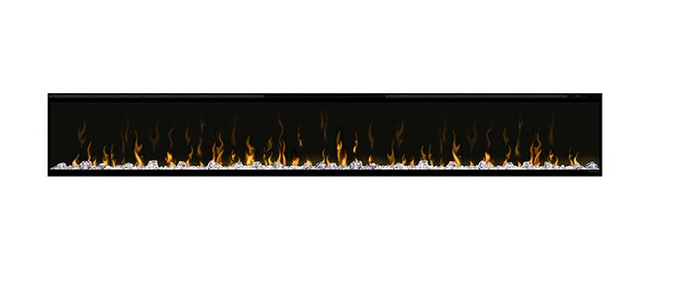

Dimplex IgniteXL 100" Electric Fireplace - XLF100

IgniteXL 100" Electric Fireplace

Package contents for this model

FIREPLACE & FINISHING

  • Dimplex IgniteXL 100-inch electric firebox with integrated heater
  • Front tempered glass and mirrored back panel
  • Medium acrylic crystal ember media (6 bags)
  • Large acrylic crystals (24 pieces)

CONTROLS & INSTALLATION

  • Remote control
  • 120V plug-in power cord (separate cord for installation)
  • Mounting hardware, level and owner's manual
View Full Technical Specifications

Fit and finish

Dimensions

Overall size

W × H × D
Width
101 3/8"
Height
16 1/2"
Depth
5 3/4"

Framing / rough opening

Required opening
Framing width
100 5/8"
Framing height
16"
Framing depth
3 1/2"

Viewing area

Visible flame area
Viewing height
11 3/4"

Performance

Heating and electrical

Maximum heat output
8,530 BTU
Maximum wattage
2,500 W
Heating area
400 / 1,000 sq. ft.
Voltage
120V / 240V
Amperage
See manufacturer documentation for voltage-specific current draw.
Hardwire
Yes
Plug-in
Yes

Project planning

Installation and viewing

Installation type
Recessed
Viewing style
Front View
Best For
Shallow Installations
Indoor / outdoor rating
Indoor / Covered Outdoor
Heater location
Front Vent
Installation configurations
Front / Single-Sided

Everyday experience

Controls and experience

Flame Colours
Multi-colour
Smart / app control
No
Remote
Yes
Media type
Large and Medium Acrylic Crystals

Model information

Product details

Series
Ignite
Size
100"
Size range
D. Statement (80"+)
Shipping weight
137.6 lbs

Coverage

Warranty

5-Year Limited Indoor / 1-Year Limited Outdoor

About This Fireplace

The Ignite XL Linear Electric Fireplace offers a sleek, built-in look with realistic flame effects and flexible installation for modern spaces. Designed for full recess into a 2x6 wall, it creates a clean, trimless finish—perfect for living rooms, bedrooms, and covered outdoor areas. Available in sizes from 50" to 100", it’s tailored to fit a wide range of layouts.

Featuring Comfort$aver® technology, it delivers efficient supplemental heat with the option for flame-only operation year-round. The Multi-Fire® flame system produces layered, lifelike visuals with customizable color settings, allowing you to fine-tune the ambiance. Finished with edge-to-edge glass and included remote and hidden touch controls, the Ignite XL combines contemporary design with reliable, low-maintenance performance.

  • Recessed linear electric fireplace with trimless design
  • Multi-Fire® flames with customizable colors
  • Fits standard 2x6 wall construction
  • Efficient supplemental heat with flame-only mode
  • Ideal for indoor and covered outdoor installations

Frequently Asked Questions

Product, delivery and warranty answers in one place.

How much supplemental heat does this fireplace provide?

Maximum manufacturer-listed output: 8,530 BTU.

Manufacturer-listed heating area: 400/1,000 sq ft.

Actual heat output and room coverage depend on electrical configuration, room conditions and installation.

Can I install this fireplace below a TV?

Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.

What is included with this fireplace?

Verified package contents: Dimplex IgniteXL 100-inch electric firebox with integrated heater, Front tempered glass and mirrored back panel, Medium acrylic crystal ember media (6 bags), Large acrylic crystals (24 pieces), Remote control, 120V plug-in power cord (separate cord for installation), Mounting hardware, level and owner's manual. Optional media and accessories are sold separately unless specifically stated.

Can this fireplace be shipped or locally delivered?

This particular item is pickup only from our Burlington showroom. Shipping and local delivery are not offered for this item. Please contact us to arrange collection.

Can I pick up my fireplace in Burlington?

Yes. This is a pickup-only item. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.

What warranty applies to this model?

The product's listed manufacturer warranty is 5-Year Limited Indoor / 1-Year Limited Outdoor.

Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.

What if my fireplace arrives damaged?

Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
