PLAN WITH CONFIDENCE

Will It Fit Your Space?

Check framing, power and installation details before you order.

DIMENSIONS & FRAMING

Overall product dimensions

27 3/8"
Width
23 1/2"
Height
7 1/2"
Depth

FRAMING DIMENSIONS

26 1/2"
Width
23"
Height
9"
Min. depth
View installation manual

ELECTRICAL REQUIREMENTS

Electrical requirements for this model

120V

Maximum rated power
1,500 W
Current draw (amps)
12.5 A
Connection
Hardwire capablePlug-in capable

INSTALLATION TYPE

Installation options for this model

Insert

  • Front View

Confirm framing, electrical requirements and final clearances against the manufacturer's current installation instructions before installation.

INCLUDED WITH YOUR FIREPLACE

What's included

Dimplex Vital Spark 28" Built-In Electric Firebox

Vital Spark 28" Built-In Electric Firebox

Package contents for this model

FIREPLACE & FINISHING

  • Vital Spark 28-inch electric firebox with integrated heater
  • Moulded decorative log set and illuminated ember bed
  • Front glass panel

CONTROLS & INSTALLATION

  • Remote control
  • 120V plug-in conversion kit / power cord
  • Mounting bracket hardware
  • Installation and owner's manual
View Full Technical Specifications

Fit and finish

Dimensions

Overall size

W × H × D
Width
27 3/8"
Height
23 1/2"
Depth
7 1/2"

Framing / rough opening

Required opening
Framing width
26 1/2"
Framing height
23"
Framing depth
9"

Performance

Heating and electrical

Maximum heat output
5,118 BTU
Maximum wattage
1,500 W
Heating area
1,000 sq. ft.
Voltage
120V
Amperage
See manufacturer documentation for voltage-specific current draw.
Hardwire
Yes
Plug-in
Yes

Project planning

Installation and viewing

Installation type
Insert
Viewing style
Front View
Best For
Existing fireplace openings
Indoor / outdoor rating
Indoor Only
Heater location
Front Vent
Installation configurations
Front-facing

Everyday experience

Controls and experience

Flame Colours
Multi-colour
Smart / app control
Yes — Glen Dimplex Connect app control
Remote
Yes
Media type
Log Set

Model information

Product details

Series
Spark
Size
28"
Size range
A. Compact (Under 50")
Shipping weight
46.2 lbs

Coverage

Warranty

1 Year Limited

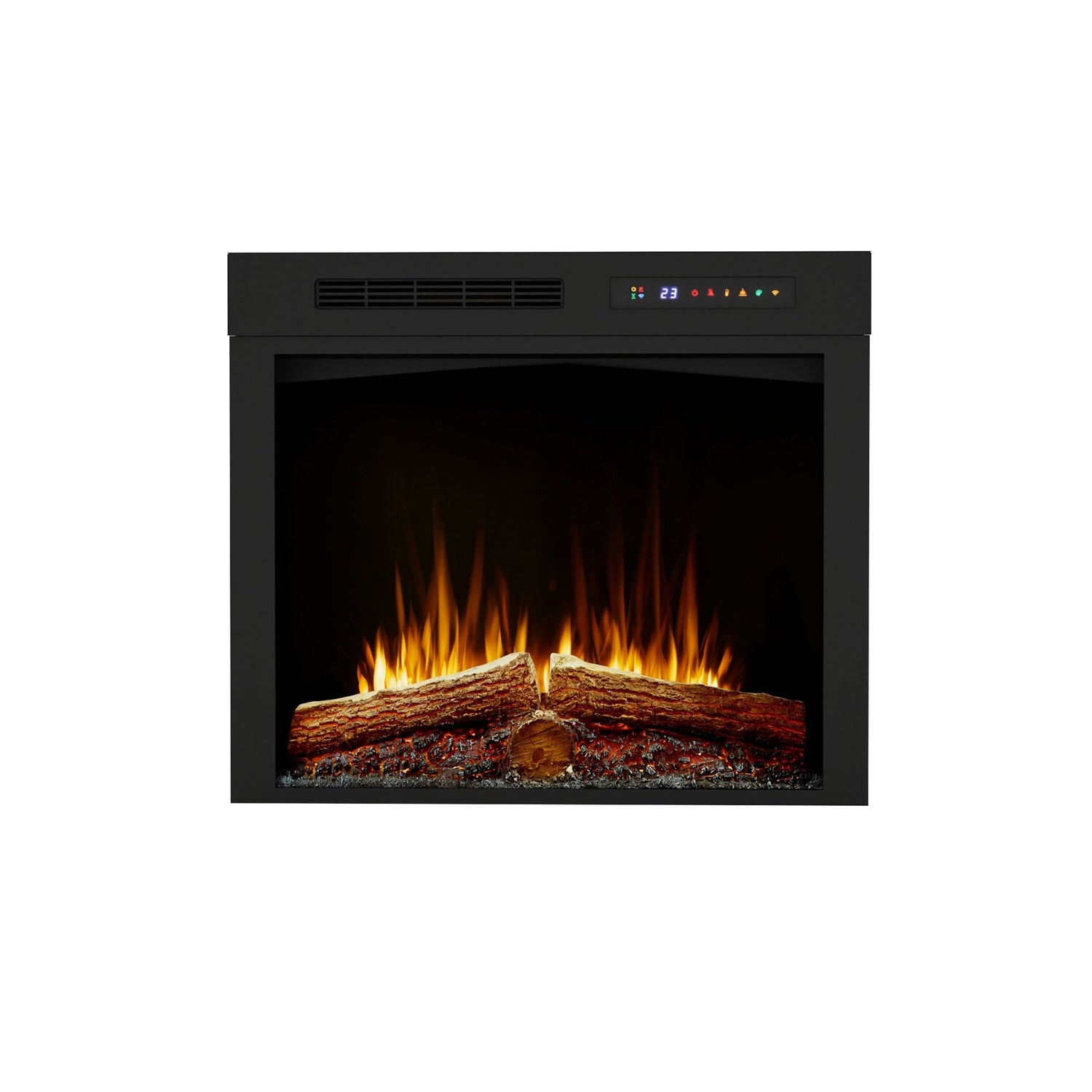

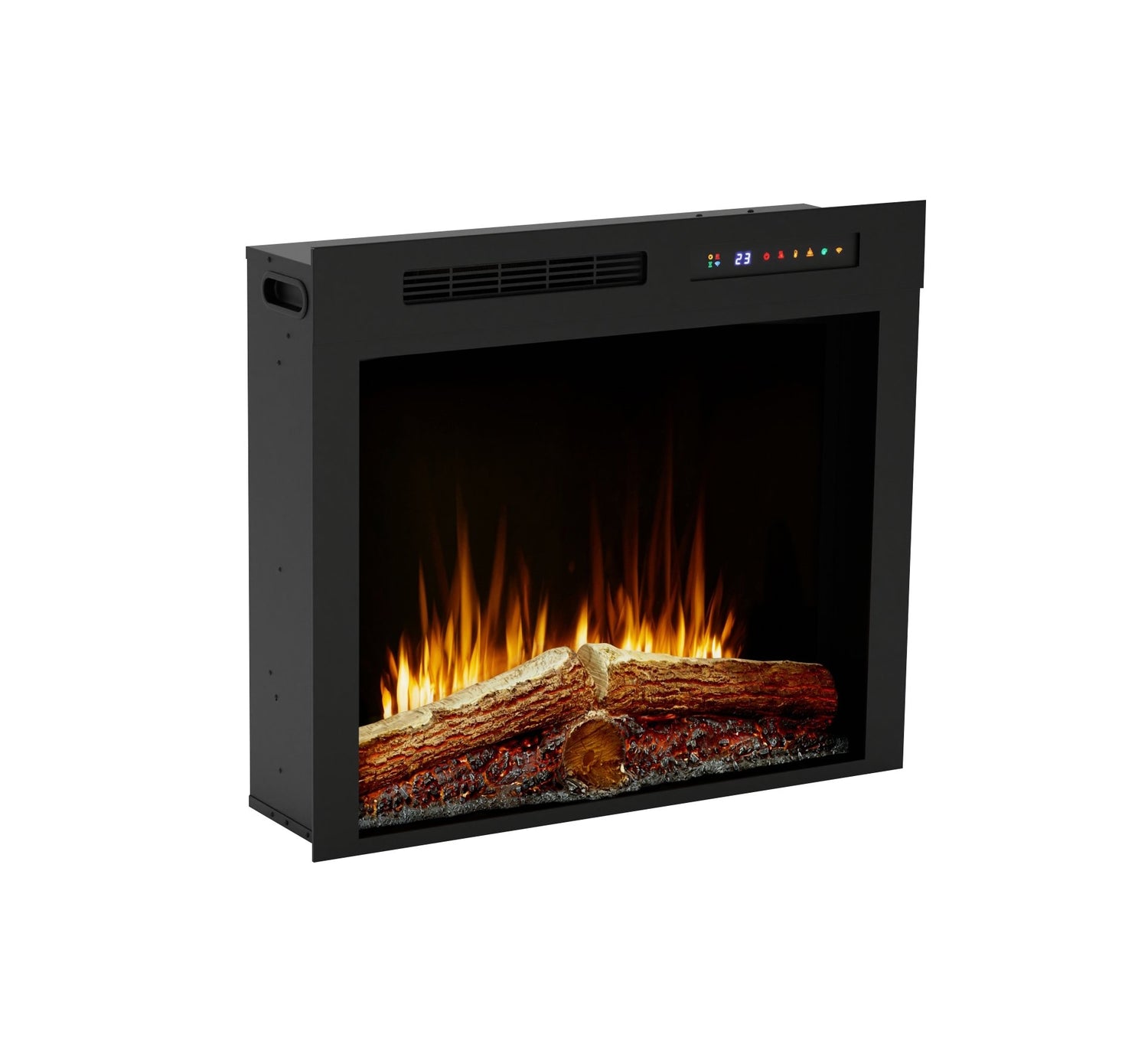

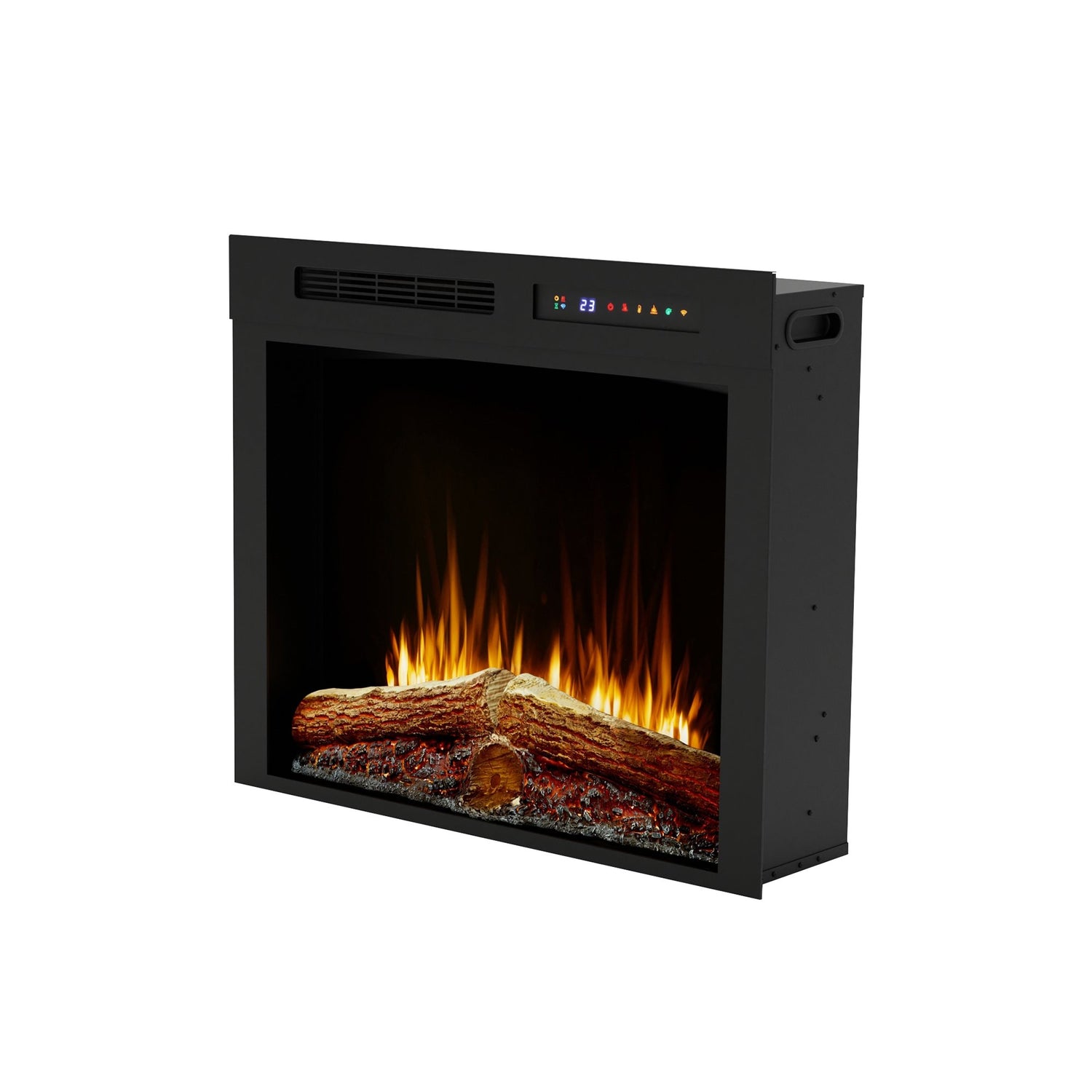

About This Fireplace

The Dimplex Vital Spark 28" Built-In Electric Firebox (SPK28) is a front-view firebox with a realistic log set, 13 flame-colour settings, seven media colour themes and integrated crackling sound effects. It can be controlled by the included remote, built-in touch controls or the Glen Dimplex Connect app.

The Spark operates on 120V at 12.5A and 1,500W, producing up to 5,118 BTU. It supports both plug-in and hardwired installation and can be fitted into a suitable existing fireplace opening or mantel/console. Appliance dimensions are 27 3/8" W × 23 1/2" H × 7 1/2" D; minimum opening dimensions are 26 1/2" W × 23" H × 9" D.

Will This Fit My Fireplace?

Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.

1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.

Measure the usable finished opening—not the outside brick, stone, tile or mantel.

2
Your Fit ResultBased on the measurements entered.
?
Enter all four measurements

We’ll compare your opening with the minimum space required.

MeasurementMinimumYour openingDifference
Width (front)26 1/2"——
Width (back)26 1/2"——
Height23"——
Depth9"——
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body Illustration

The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.

Your openingEnter measurements
Minimum required26 1/2" W × 23" H
Extra space—
Your opening Minimum required Fireplace body

Frequently Asked Questions

Product, delivery and warranty answers in one place.

How much supplemental heat does this fireplace provide?

Maximum manufacturer-listed output: 5,118 BTU.

Manufacturer-listed heating area: 1,000 sq ft.

Actual heat output and room coverage depend on electrical configuration, room conditions and installation.

Can I install this fireplace below a TV?

Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.

What is included with this fireplace?

Verified package contents: Vital Spark 28-inch electric firebox with integrated heater, Moulded decorative log set and illuminated ember bed, Front glass panel, Remote control, 120V plug-in conversion kit / power cord, Mounting bracket hardware, Installation and owner's manual. Optional media and accessories are sold separately unless specifically stated.

Can I check whether this fireplace fits my existing opening?

Yes. Compare your measured finished opening against this model's entered minimum requirements using our fit checker. Always confirm against the manufacturer's instructions.

How do shipping and local delivery work?

For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.

Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.

When will my fireplace arrive?

Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.

Can I pick up my fireplace in Burlington?

Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.

What warranty applies to this model?

The product's listed manufacturer warranty is 1 Year Limited.

Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.

What if my fireplace arrives damaged?

Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
