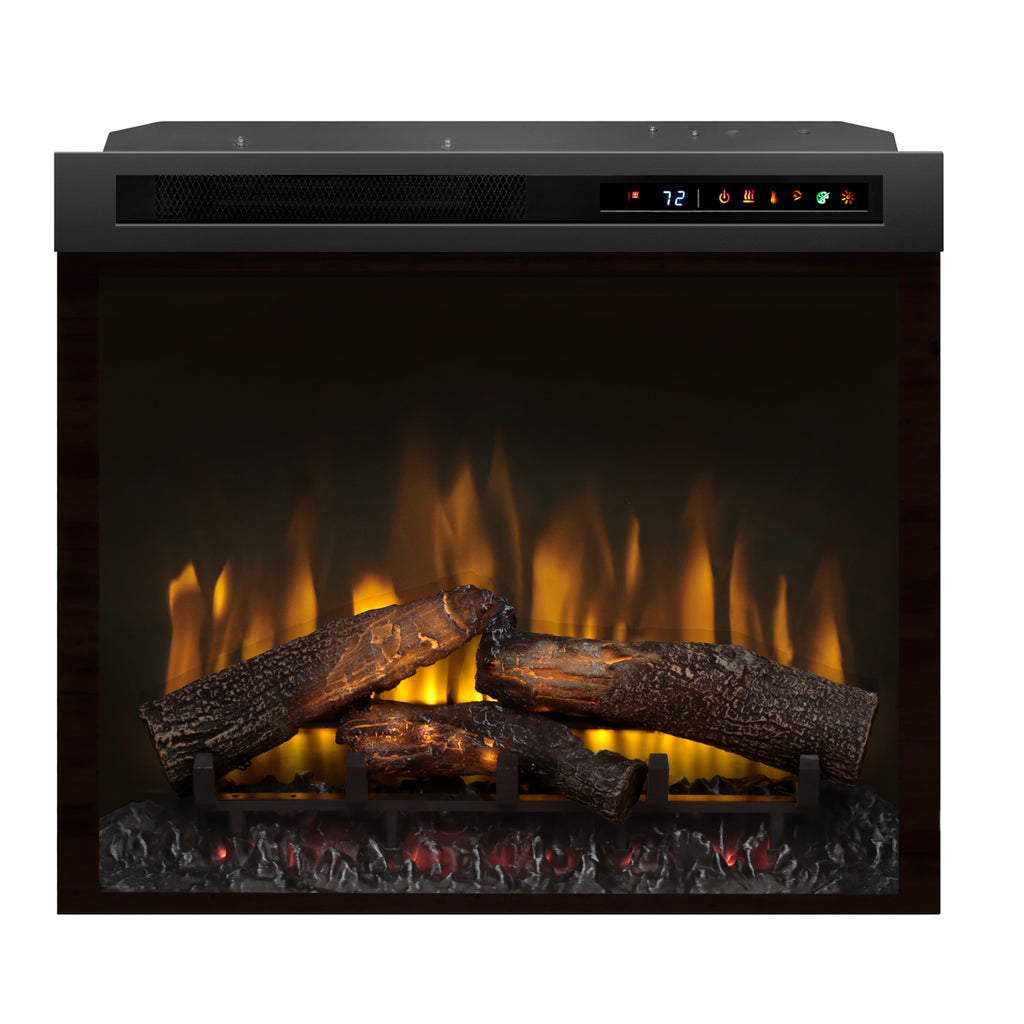

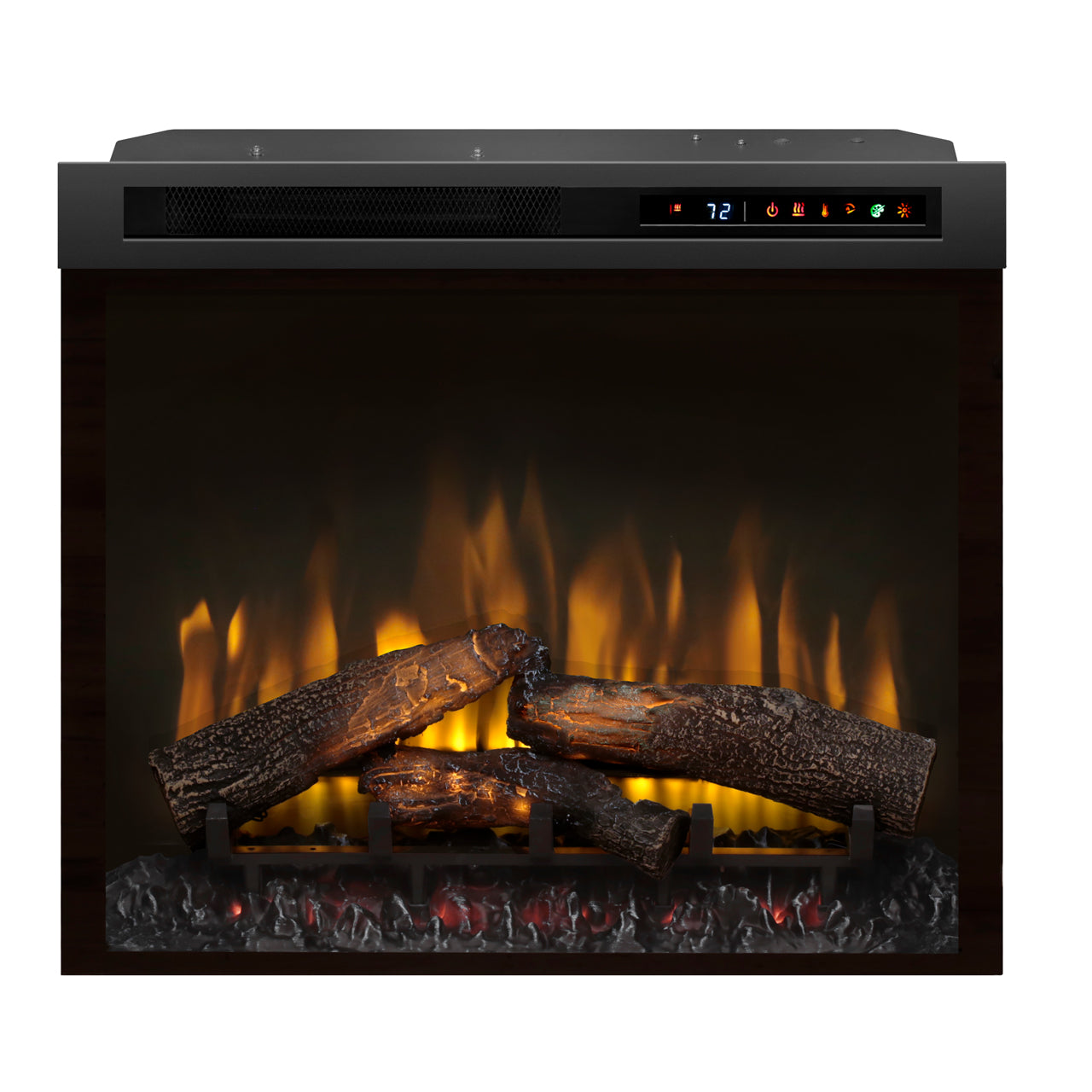

Front View
Sale
Supplemental heat output; actual output depends on power and settings.
Realogs
Remote: Yes
INCLUDED WITH YOUR FIREPLACE
What's included
Multi-Fire XHD 28" Plug-In Electric Firebox
Package contents for this model
FIREPLACE & FINISHING
- Realogs decorative log ember bed
CONTROLS & INSTALLATION
- Dimplex Multi-Fire XHD/Nova 28-inch plug-in electric firebox with heater
- Factory-installed 120V power cord with plug
- Multifunction remote control
View Full Technical Specifications
Fit and finish
Dimensions
Overall size
W × H × D- Width
- 27 3/8"
- Height
- 23 1/2"
- Depth
- 7 1/2"
Framing / rough opening
Required opening- Framing width
- 27"
- Framing height
- 23 1/8"
- Framing depth
- 8"
Performance
Heating and electrical
- Maximum heat output
- 5,000 BTU
- Maximum wattage
- 1,465 W
- Heating area
- 1,000 sq. ft.
- Voltage
- 120V
- Amperage
- See manufacturer documentation for voltage-specific current draw.
- Plug-in
- Yes
Project planning
Installation and viewing
- Installation type
- Insert
- Viewing style
- Front View
- Best For
- Existing fireplace openings
- Indoor / outdoor rating
- Indoor Only
- Heater location
- Front Vent
Everyday experience
Controls and experience
- Remote
- Yes
- Media type
- Realogs
Model information
Product details
- Series
- Multi-Fire
- Size
- 28"
- Size range
- A. Compact (Under 50")
- Shipping weight
- 32 lbs
Coverage
Warranty
2 Year Limited
About This Fireplace
The Multi-Fire XHD invites you to get cozy by the fire, with its thin black glass surround revealing flames that are vivid day or night. Change the flames above the diamond-like acrylic ice media and create your own perfect atmosphere by adjusting the LED lighting with just a click of the remote control or with the built-in touch controls. Offering a powerful and safe ceramic heater that is capable of heating up to 1,000 sq.ft, the Multi-Fire XHD is the smart way to add comfort and ambiance to your room.
INCLUDES
28" Electric Firebox, Multi-Function Remote & 2 Year Warranty
PRODUCT DETAILS
Brand Dimplex
Finish Black
Style Traditional
Fuel Bed Realogs(XHD) or Acrylic Ice(XHD)
Installation Cabinet or Fireplace
Mounting Options Fully Recessed
Dimensions 27 3/8'' W x 23 1/2'' H x 7 1/2'' D
Weight 45 lbs
Volts 120
Amps 12.5
Watts 1500
BTUs 5118
Wiring Plug-In
Bulb Type LED
Heating Area 1000 sq.ft
Remote Control Options Multi-Function
Manufacturer's Warranty 2 Year
Downloads
Will This Fit My Fireplace?
Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.
1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.
Measure the usable finished opening—not the outside brick, stone, tile or mantel.
2
Your Fit ResultBased on the measurements entered.
Enter all four measurements
We’ll compare your opening with the minimum space required.
MeasurementMinimumYour openingDifference
Width (front)27"——
Width (back)27"——
Height23 1/8"——
Depth8"——
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body
Illustration
The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.
Your openingEnter measurements
Minimum required27" W × 23 1/8" H
Extra space—
Your opening
Minimum required
Fireplace body
Frequently Asked Questions
Product, delivery and warranty answers in one place.
How much supplemental heat does this fireplace provide?
Maximum manufacturer-listed output: 5,000 BTU.
Manufacturer-listed heating area: 1,000 sq ft.
Actual heat output and room coverage depend on electrical configuration, room conditions and installation.
Can I install this fireplace below a TV?
Clearances vary by fireplace and TV. Check this model's official installation instructions and the television manufacturer's requirements before choosing the location.
What is included with this fireplace?
Verified package contents: Dimplex Multi-Fire XHD/Nova 28-inch plug-in electric firebox with heater, Realogs decorative log ember bed, Factory-installed 120V power cord with plug, Multifunction remote control. Optional media and accessories are sold separately unless specifically stated.
Can I check whether this fireplace fits my existing opening?
Yes. Compare your measured finished opening against this model's entered minimum requirements using our fit checker. Always confirm against the manufacturer's instructions.
How do shipping and local delivery work?
For qualifying Canadian orders, standard shipping costs $199 below $999 and is free at $999 or more. Remote locations, oversized items and certain destinations may need a custom freight quote.
Qualifying orders of $999 or more may receive free local delivery within our Burlington-area delivery zone. Final shipping and delivery eligibility are confirmed at checkout or by our team.
When will my fireplace arrive?
Dispatch depends on supplier availability and the item selected; transit time begins after dispatch. Refer to the estimate near the purchase controls, or contact us for a model-specific update before ordering.
Can I pick up my fireplace in Burlington?
Pickup is available on eligible orders by arrangement. Our showroom is at Unit G, 4129 Harvester Road, Burlington, Ontario. Please contact us to confirm your order is ready before travelling.
What warranty applies to this model?
The product's listed manufacturer warranty is 2 Year Limited.
Review the manufacturer's warranty terms for coverage, exclusions and claim requirements, or ask our team for assistance.
What if my fireplace arrives damaged?
Inspect the package when it arrives. Photograph any visible damage, note it with the delivery carrier where possible, keep the packaging, and contact our team promptly with your order details so we can help review the next steps.
Downloads & Resources
Manufacturer documents for planning and installation.
Manufacturer Specification SheetMeasurements and technical informationView PDF ↗
Installation / Owner's ManualWiring, safety, clearances and operationView PDF ↗
