The 36” Elevation™ X Electric Fireplace delivers a highly realistic, customizable flame experience with authentic logs, crackling sounds, quiet warmth, easy installation, and smart controls through remote, app, Google Home, or Alexa.




Napoleon ElevationX 36" Electric Fireplace - NEFB36LCD-MF

Immersive Realism With Cozy Smart Comfort.

View Inspiration ->

Interactive Fit Checker

Will This Fit My Fireplace?

Enter the finished inside dimensions of your existing fireplace opening. The checker will compare them with this model’s minimum requirements.

1
Enter Your Opening MeasurementsUse inches. Fractions such as 32 1/2 are accepted.

Measure the usable finished opening—not the outside brick, stone, tile or mantel.

2
Your Fit ResultBased on the measurements entered.
?
Enter all four measurements

We’ll compare your opening with the minimum space required.

MeasurementMinimumYour openingDifference
Width (front)39""
Width (back)39""
Height35 3/16""
Depth16 5/8""
3
Visual Fit GuideA simplified front-view illustration.
Enter measurements to see fit
Your fireplace opening
Minimum opening required
Fireplace body Illustration

The shaded opening shows the space you have. The dashed box shows the minimum space this unit needs.

Your openingEnter measurements
Minimum required39"" W × 35 3/16"" H
Extra space
Your opening Minimum required Fireplace body

How to Measure Your Fireplace Opening

1Front width

Measure the narrowest inside width at the front.

2Back width

Check whether the opening narrows toward the back.

3Height

Measure from the hearth to the lowest point above.

4Depth

Measure to the shallowest obstruction inside.

Dimensions & Installation Information

Review the official product specifications and installation manual before ordering.

Important: This tool is for preliminary product selection. Final compatibility, clearances, electrical requirements and installation must be confirmed using the manufacturer’s current instructions and the actual conditions in your home.

Key Features

Designed for performance, simplicity, and everyday comfort.

A premium electric fireplace experience with refined design, modern controls, and dependable performance.

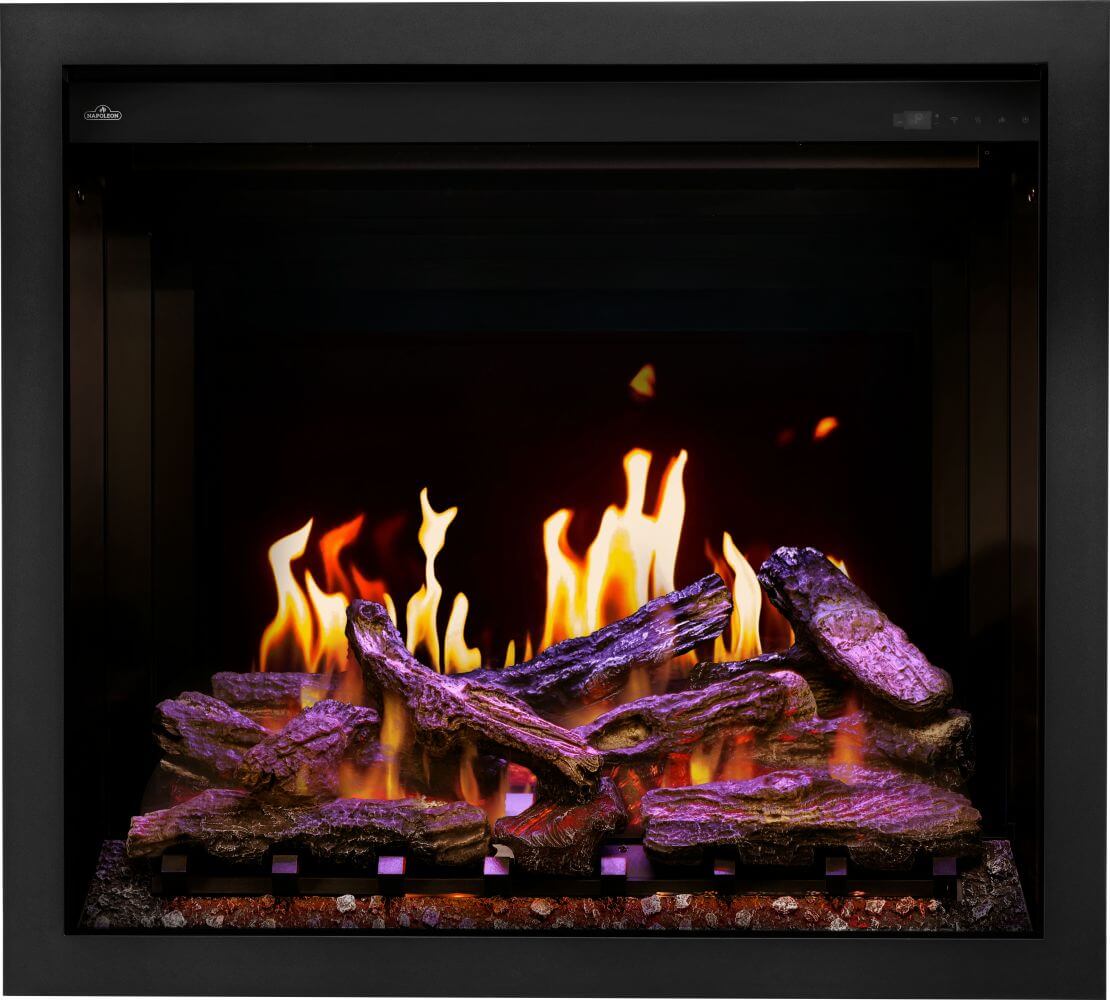

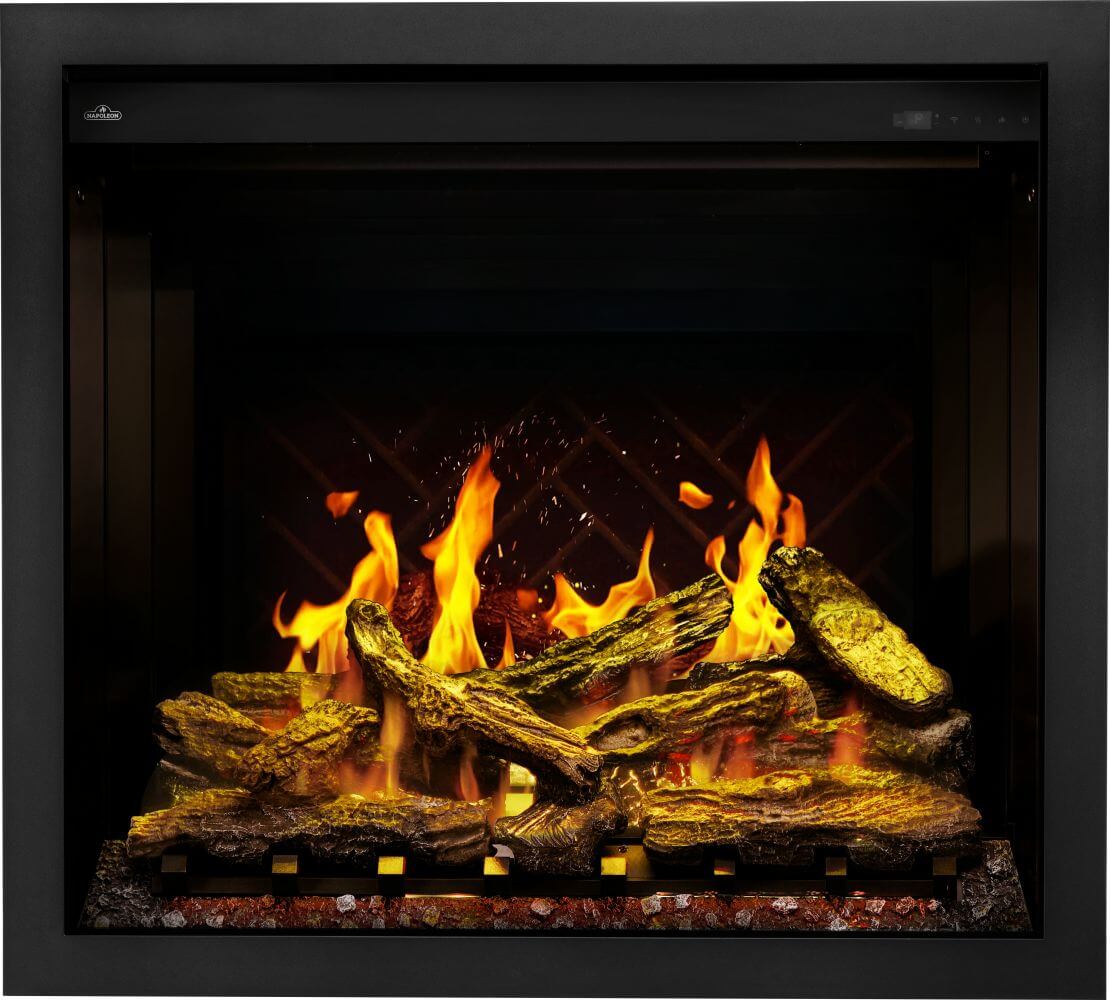

High-definition gas and wood flame videos combine with multi-layer technology for a deeply immersive, lifelike fire experience.

Enjoy up to 5,000 BTUs when plugged in, or up to 10,000 BTUs when hardwired for larger spaces.

Control the fireplace with the included premium remote, Napoleon Home App, voice control, or an optional wall switch.

No gas line or chimney required, with the option to plug in or hardwire depending on your space and heating needs.

Product Specifications

Technical specifications for planning, installation, and product comparison.

Dimensions
Width39"
Height36 3/8"
Depth16 5/8"
Installation Details
InstallationInsert
Voltage120v/240v
Amps12.5
Heater LocationFront Vent
Heating Capacity400/800 sq ft
Product Details
SKUNEFB36LCD-MF
Size36"
Media TypeLogs
RemoteYes
Warranty5 Year Limited
Shipping Weight179 lbs
Availability Available to order

Product Resources

Manuals & Documents

Access installation details, measurements, framing requirements, and product documentation before you buy.

Delivery & Pickup

Free local delivery is available on qualifying orders over $899 within 60km. Free pickup is available, and Canada-wide freight options may be available depending on product size and destination.

Warranty & Protection

This product is sold by an authorized dealer and is backed by manufacturer warranty support. Optional protection plans can be selected above. Protection plan coverage is for parts only and does not include labour, diagnostics, installation, removal, reinstallation, service calls, or shipping.

Which Size Is Right For You?

Use our Fireplace Size Calculator to find the perfect fit for your space.

Launch Calculator

Need help choosing?

Our experts are here to help you find the perfect fireplace.

Contact an Expert

Frequently Asked Questions

How much heat does this fireplace provide?

This model provides supplemental heat for approximately 400/800 sq ft. Actual performance can vary based on room layout, insulation, ceiling height, and wiring setup.

What voltage does this fireplace use?

This fireplace is designed for 120v/240v power. Always confirm wiring requirements with the installation manual or a licensed electrician before installation.

How is this fireplace installed?

This model is designed for insert installation. Review the product manual for framing, clearance, and finishing requirements before starting your project.

Can this fireplace be installed under a TV?

Many electric fireplaces can be installed below a TV, but clearances vary by model and installation type. Always confirm the manual, mantel clearances, and TV manufacturer guidance before installing.
